Ricoh D065 - Page 1238

Electrical Components: 1st Stopper
SM 19 D454
Multi-Folding
Unit FD5000
D454

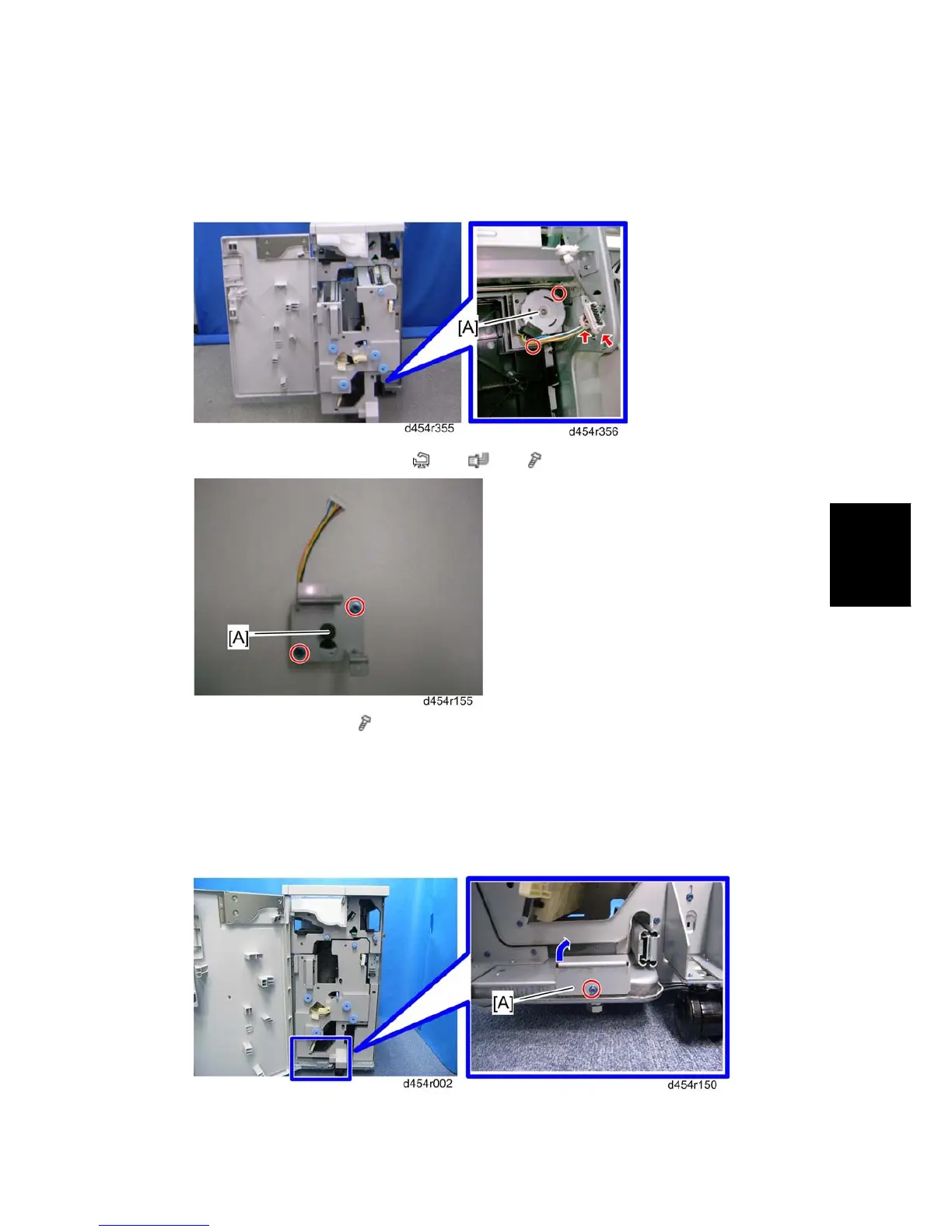

1.3.6 JOGGER FENCE MOTOR
1. Pull out the folding unit drawer ( p.6).
2. Jogger fence motor bracket [A] (
x 1, x 1, x 2)
3. Jogger fence motor [A] (
x 2)
1.3.7 1ST STOPPER UNIT
1. Folding unit cover ( p.3)
2. Rear upper cover ( p.4)
3. Rear lower cover ( p.4)
