Electrical Components: 2nd Stopper
SM 29 D454
Multi-Folding
Unit FD5000
D454

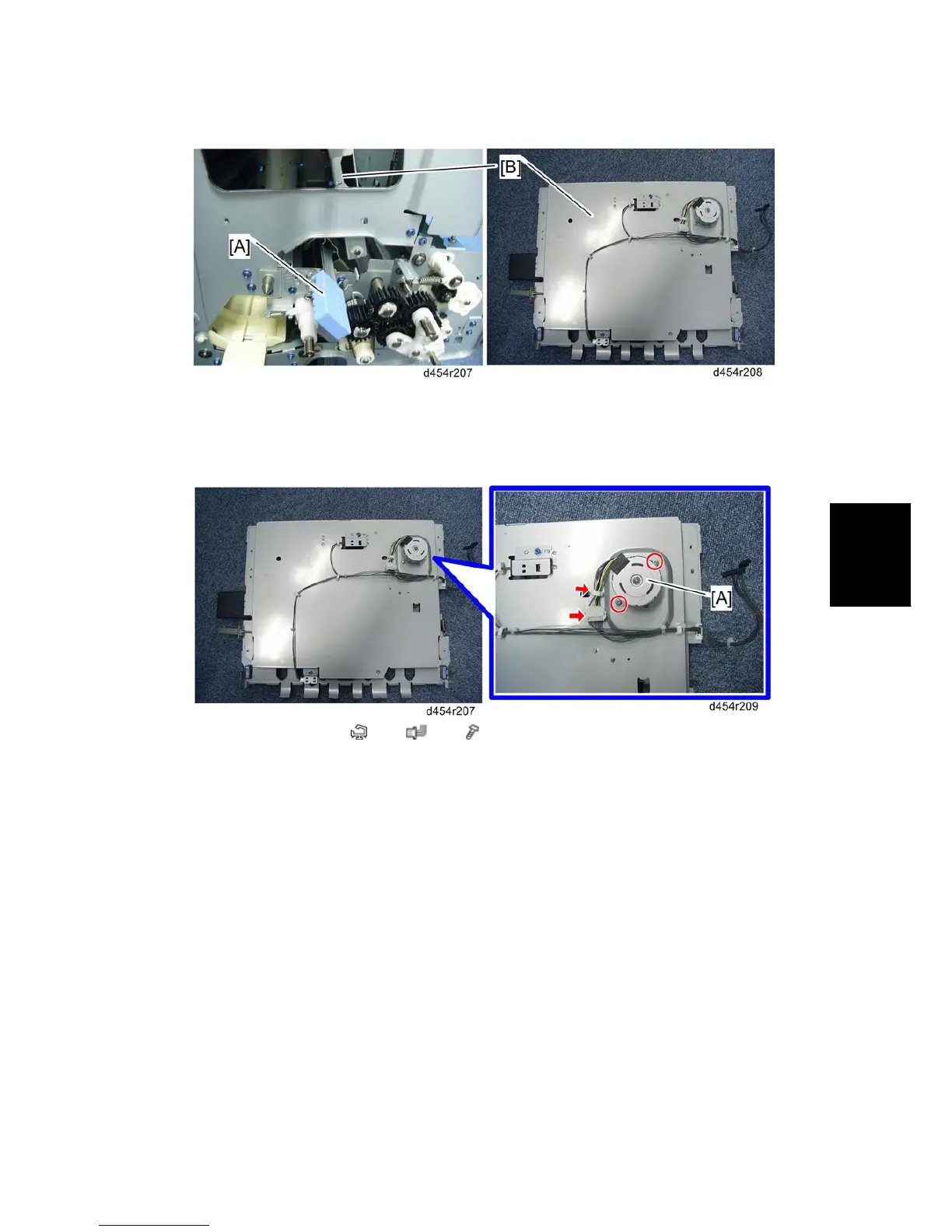

10. Open the jam removal door [A], and then remove the 2nd stopper unit [B].
1.4.2 2ND STOPPER MOTOR
1. 2nd stopper unit ( p.27)
2. 2nd stopper motor [A] (
x 1, x 1, x 2)
1.4.3 2ND STOPPER HP SENSOR
1. 2nd stopper unit ( p.27)
