Ricoh D065 - Page 1272

Electrical Components: Main 2
SM 53 D454
Multi-Folding
Unit FD5000
D454

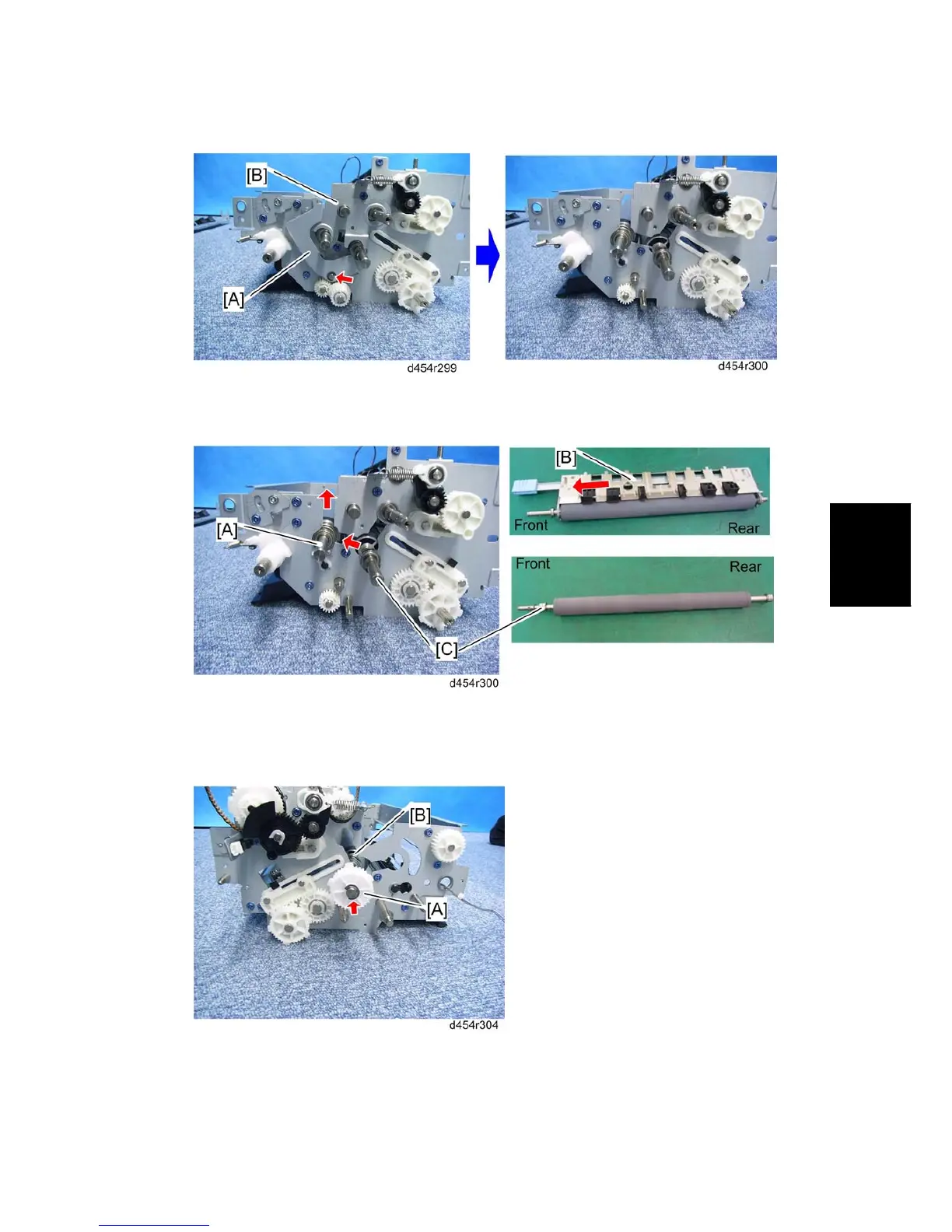

9. Tension bracket [A] ( x 1)
10. Remove the front bracket [B] ( x 2).
11. Third fold roller with the guide plate [A]
12. Remove the guide plate [B].
13. Second fold roller [C].
14. Remove the gear [A] ( x 1), and then the first fold roller [B].
