D454 88 SM

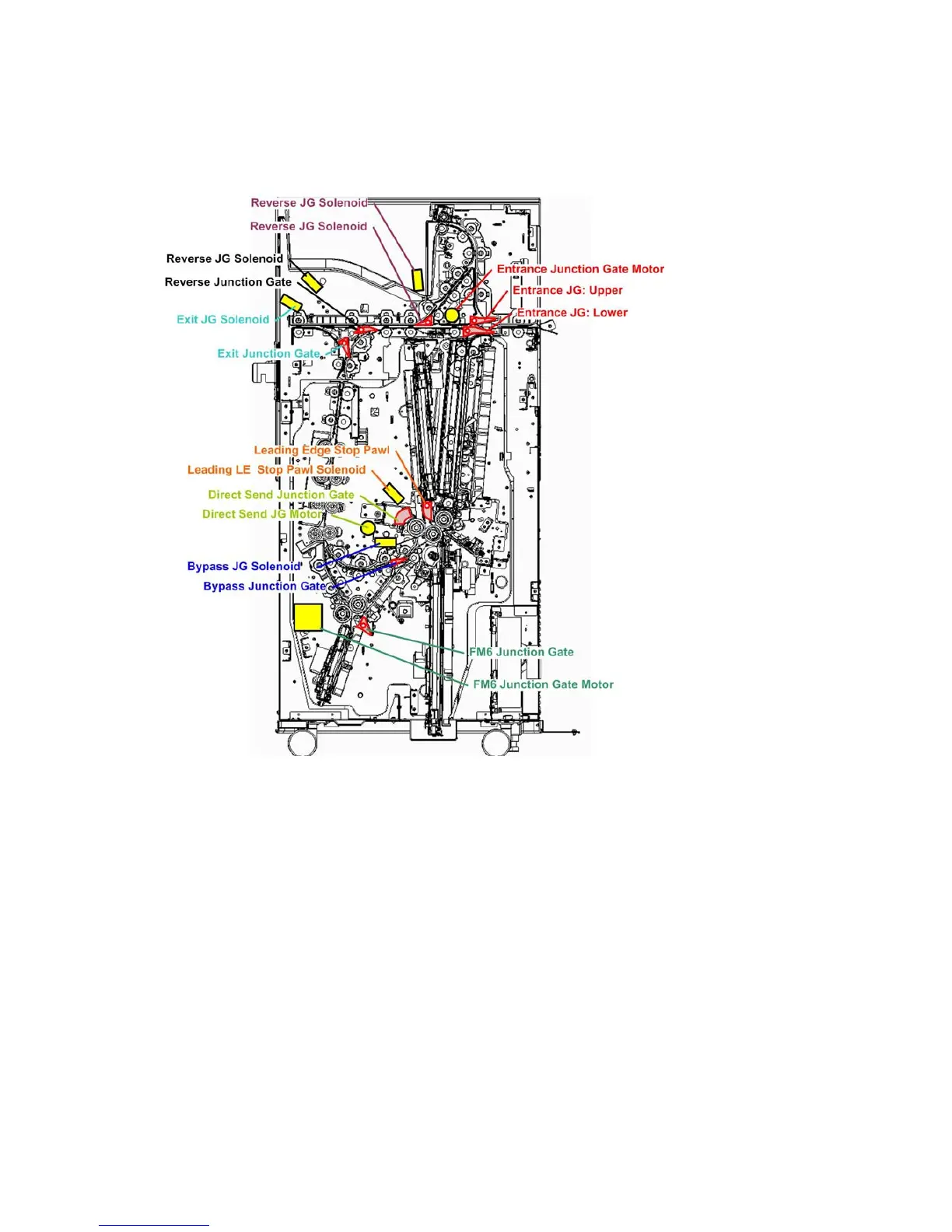

2.1.2 JUNCTION GATES, JUNCTION GATE SOLENOIDS
The illustration above shows the paper path junction gates and the solenoids and motors
that operate them.
