FM5 Double Parallel Fold
FM6 Gate Fold
FM1 Z-Folding

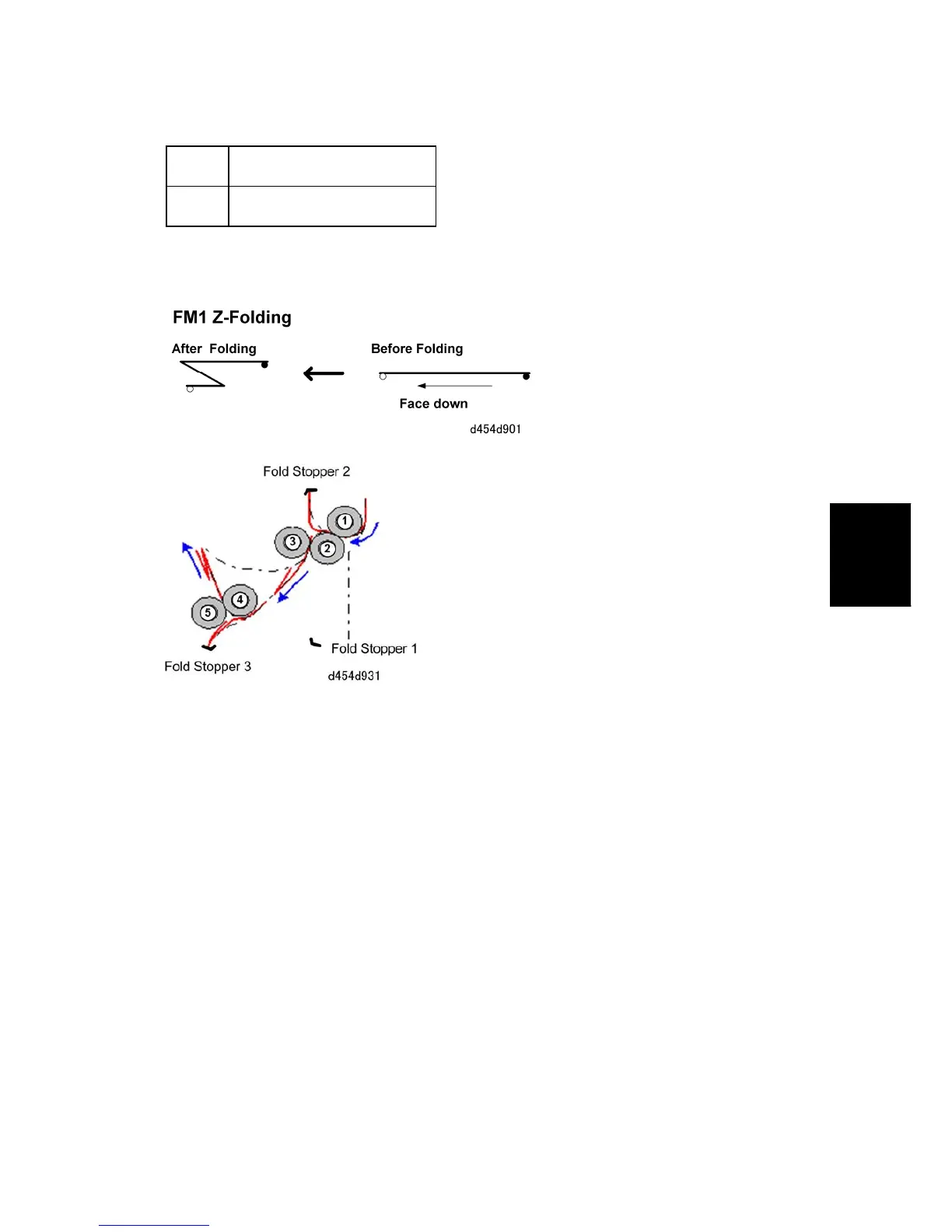

In Fold Method 1 (FM1):
 The leading edge of the paper feeds into the nip of fold rollers { and |.
 The paper is stopped by Fold Stopper 2. The paper flexes toward the nip of fold rollers
| and } which performs the first fold.
 Next, the paper is stopped by Fold Stopper 3. The paper flexes toward the nip of fold
rollers ~ and  which performs the second fold and feeds the paper into the exit path.
 Fold Stopper 1 is not used.
