Copy Tray (B756)
SM 2-89 D062/D063/D065/D066
Installation

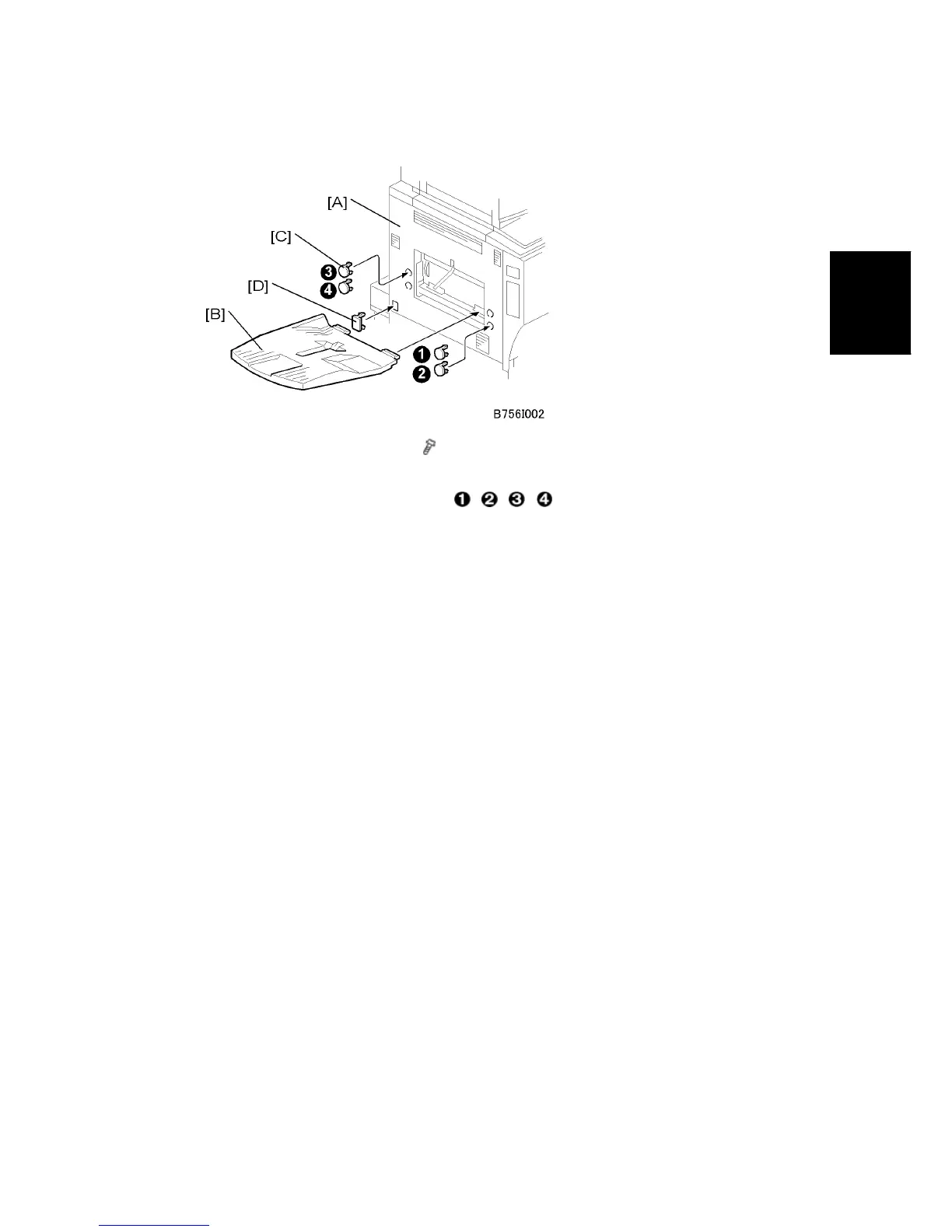

6. Reattach the left upper cover [A] (
x 2).
7. Attach the tray [B].
8. Attach the small caps [C] to the holes
, , , .
9. Attach the large cap [D] to cover the finisher power connection point.
