Key Card Bracket (B498), Key Counter Bracket (B452)
D062/D063/D065/D066 2-94 SM

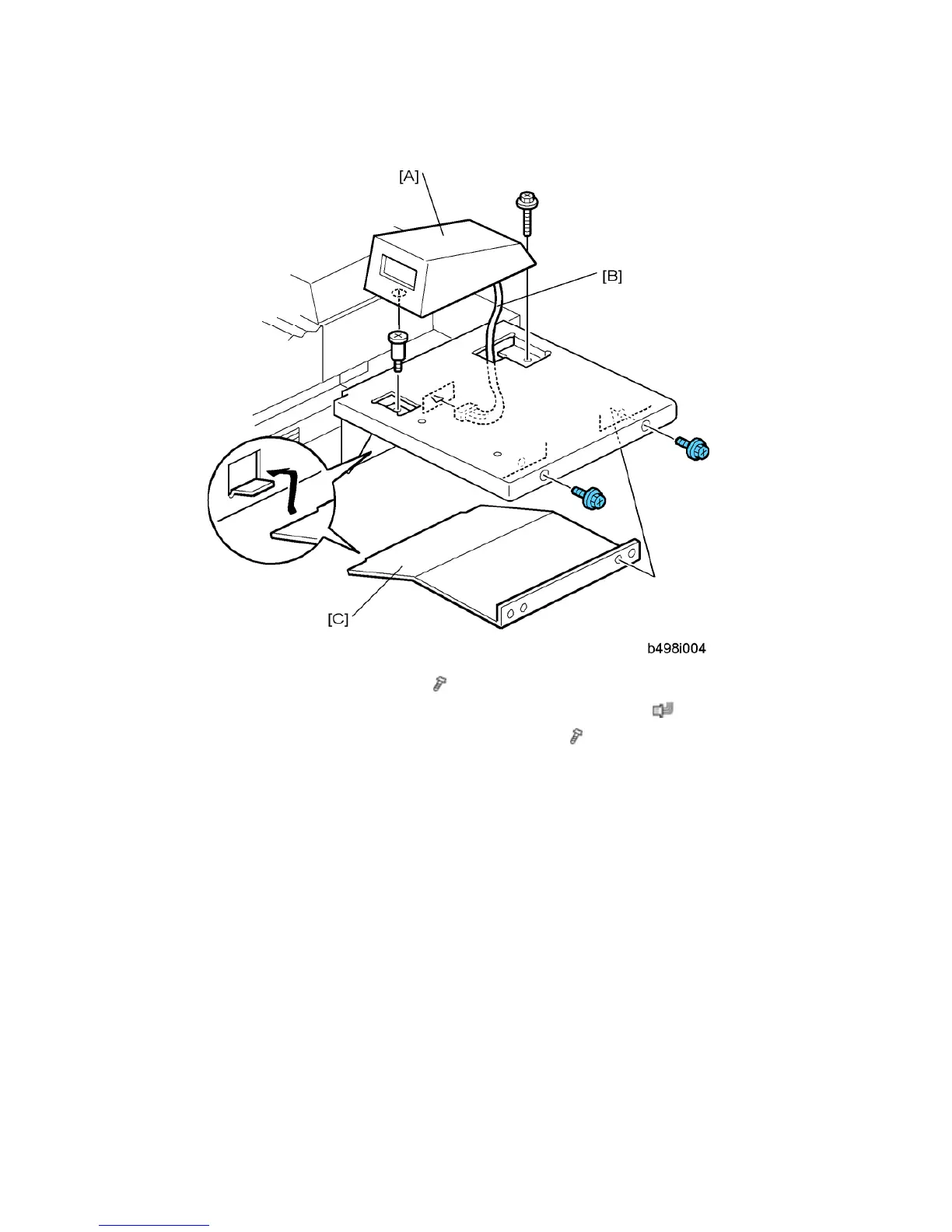

6. Attach the key counter bracket [A] (
x 2).
7. Attach the harness [B] to the key counter bracket and the machine (
x 1).
8. Attach the bracket support [C] to the side of the copier (
x 2).
