Copy Connector Kit (B328)
SM 2-101 D062/D063/D065/D066
Installation

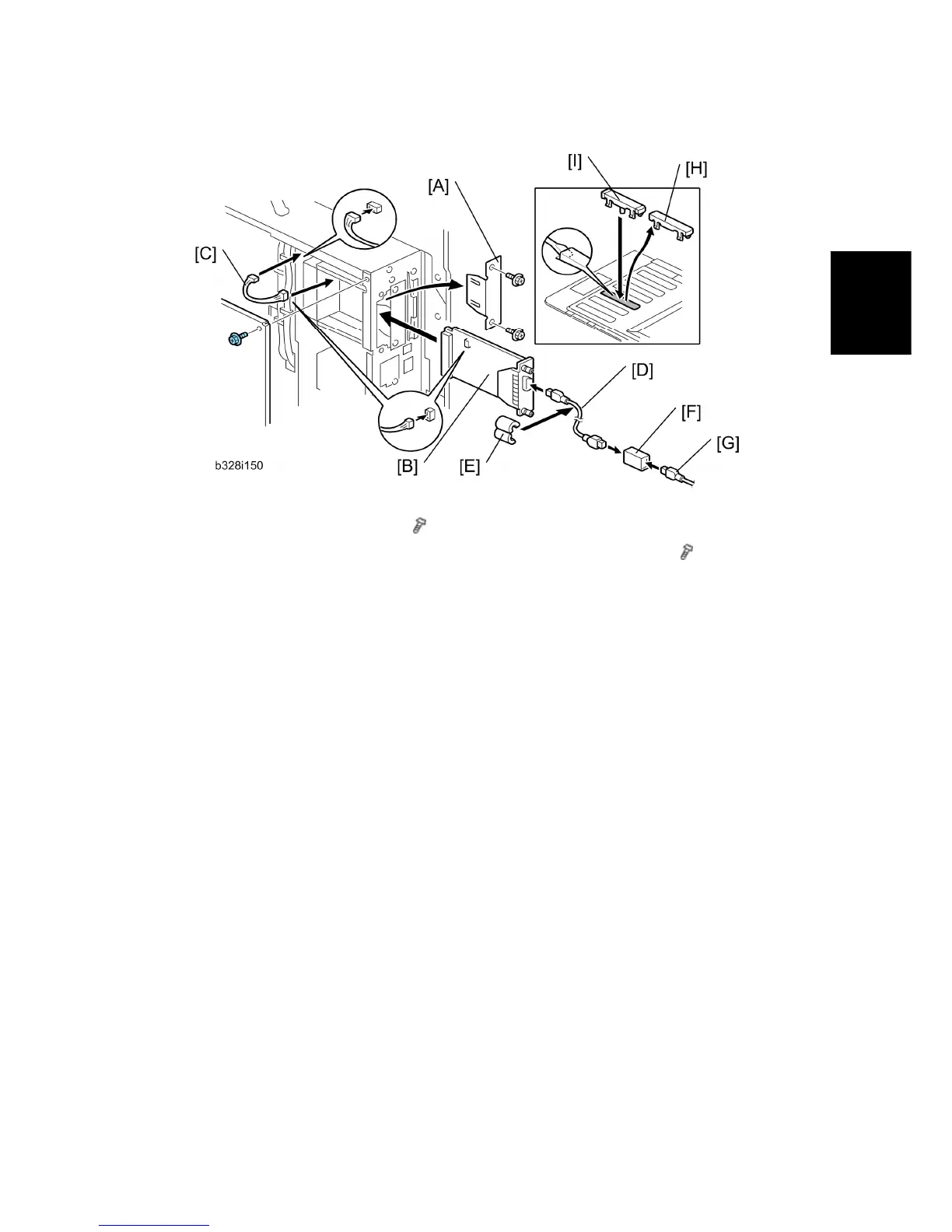

2. Remove the cover [A] of Slot B (
x 2).
3. Install the Copier Connection Kit Board B328 [B] in Slot B and fasten it (
x 2).
4. Connect the power repeater cable [C] to:
CN32 on the controller board
CN4 on the copy connector board
5. Reattach the controller box cover, rear upper and lower cover.
Repeat Steps 1 to 5 to install the connector kit on the second machine.
6. Connect the end of the interface cable [D] to the copy connector board.
7. Attach the ferrite cores [E] to both ends of the interface cable.
8. If additional cable is required, connect the cables [G] with repeater hubs [F].
9. On the operation panel of each machine, remove the third cover [H] from the bottom
("Printer").
10. Install the appropriate key on each machine.
11. Attach the "Printer/Other Function" key [I] (or its equivalent symbol for EU) if the
printer/scanner option is installed.
12. -or-
13. Attach the "Other Function" key [I] (or its equivalent symbol for EU) if the
printer/scanner option is not installed.
14. Attach the other end of the connection cable to the copy connector board installed in
the other machine.
Rev. 08/03/2009
