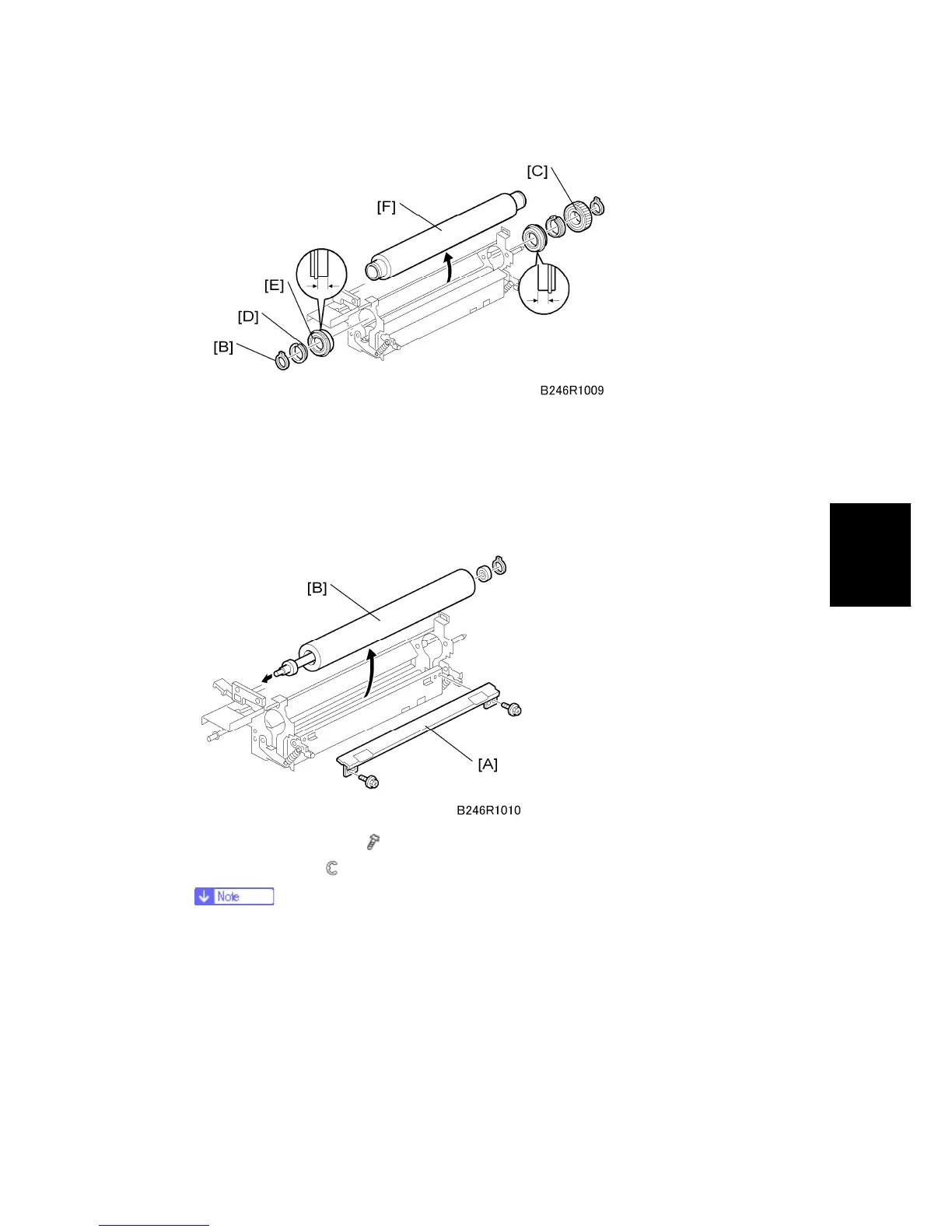

3. C-clamps (both ends) [B]
4. Drive gear [C]
5. Bushings (both ends) [D]
6. Bearings [E]
7. Hot roller [F]
8. Entrance guide plate [A] (
x 2)
9. Pressure roller [B] (
x 2)
 The pressure roller and pressure roller bearing should always be replaced
together.
