Main Machine
SM 2-17 D062/D063/D065/D066
Installation

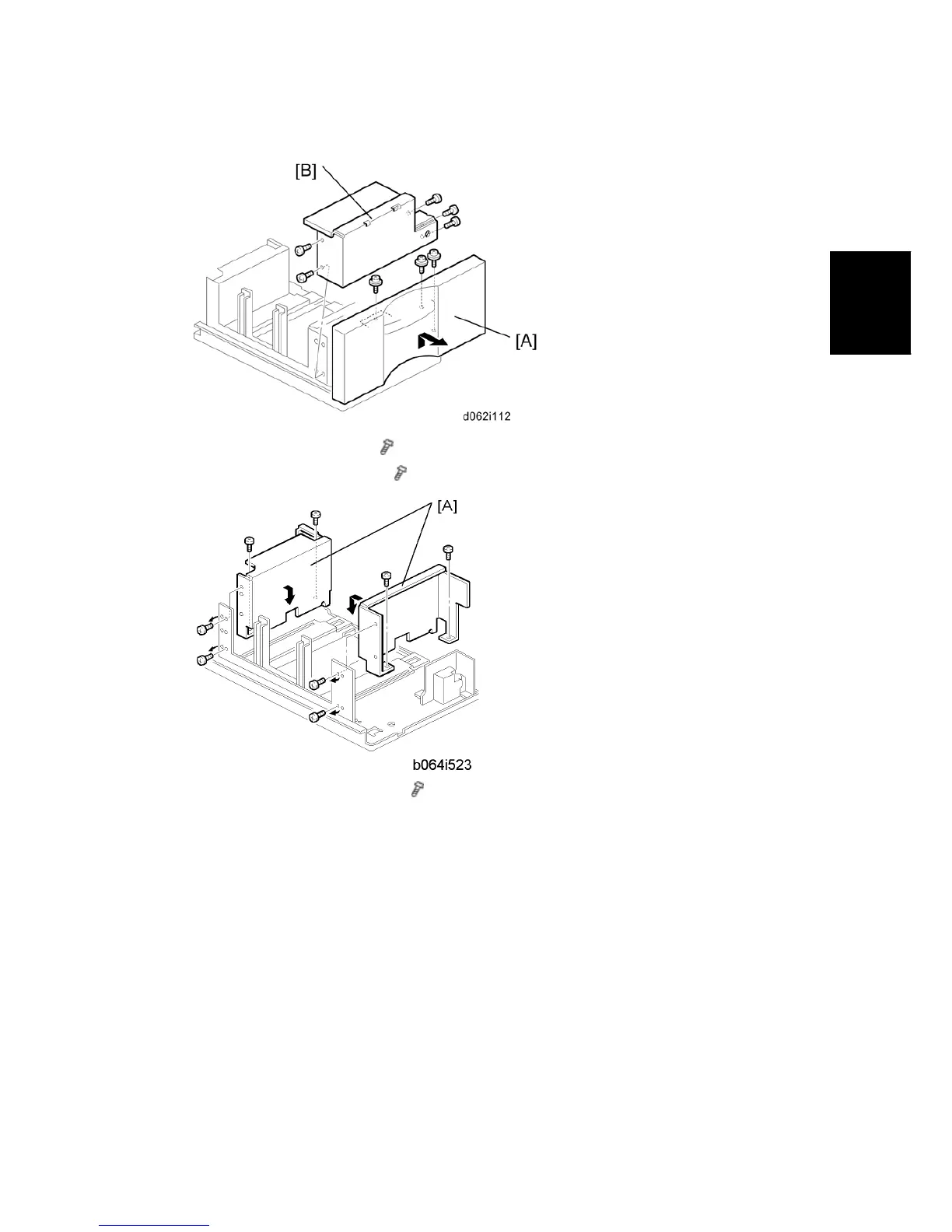

6. Remove the tray cover [A] ( x 3).
7. Remove the motor cover [B] (
x 5).
8. Re-position the side fences [A] (
x 8). The outer slot position is used when loading
A4 size paper.
9. Re-install the motor cover and the tray cover.
