A3/DLT Feeder Kit (D482)
SM 2-23 D062/D063/D065/D066
Installation

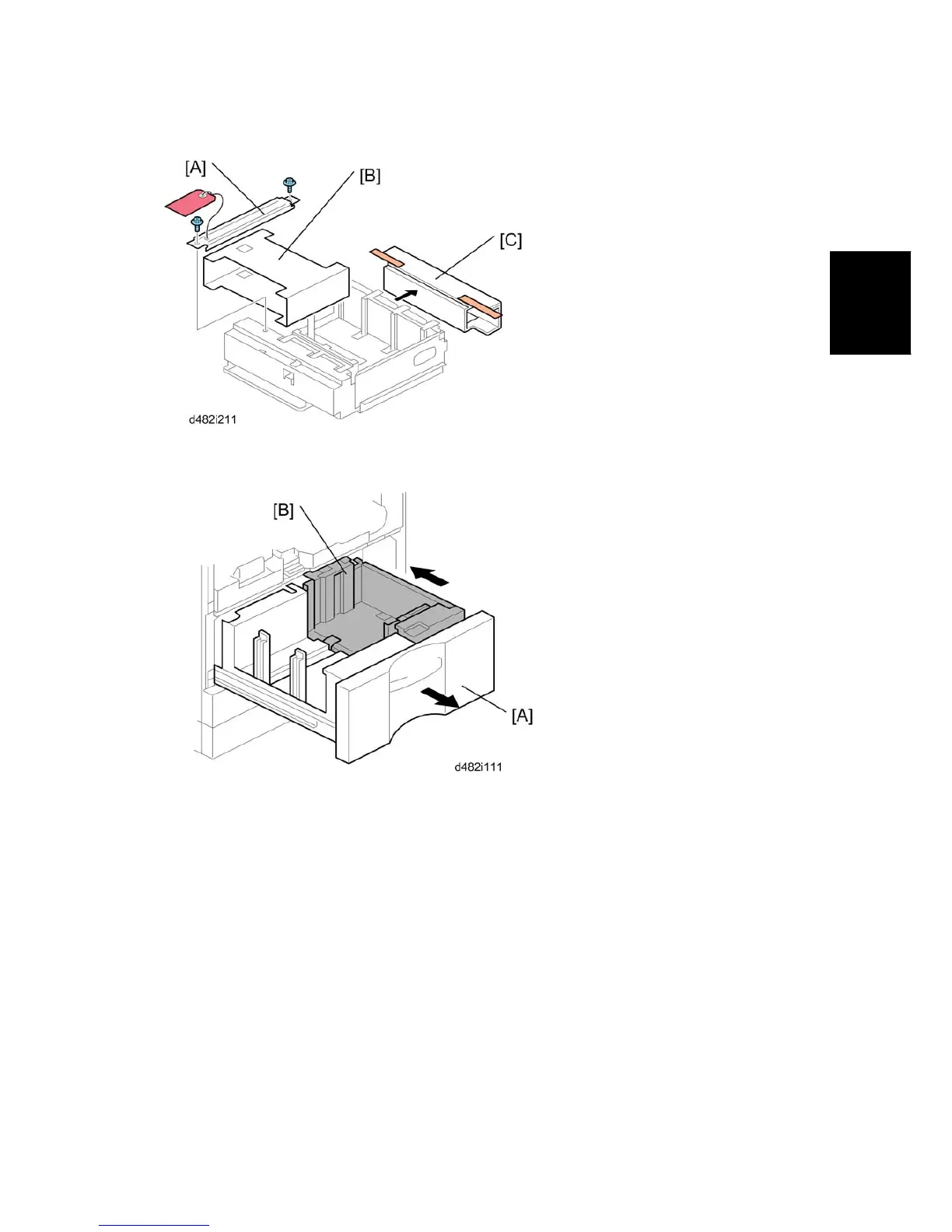

1. Remove the stay [A] ( x 2).
2. Remove the retainers [B] [C].
3. Draw out the tandem tray [A] completely to separate the left and right sides of the tray.
4. Push in the right tandem tray [B].
