Multi Folding Unit (D454)
SM 2-39 D062/D063/D065/D066
Installation

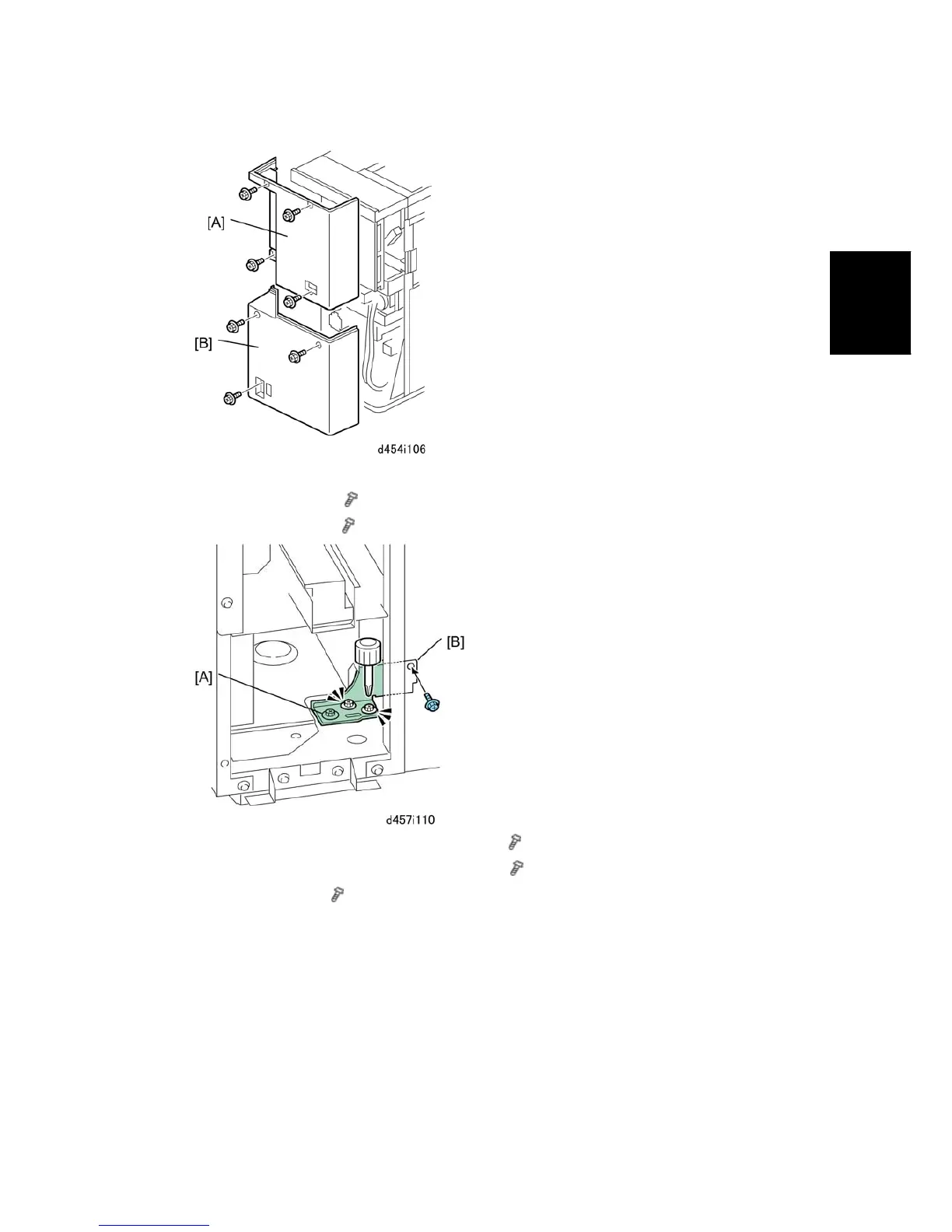

9. Remove:
[A] Rear upper cover (
x4)
[B] Rear lower cover (
x3)
10. Use a short screwdriver to loosen bracket [A] (
x2).
11. Fasten the bracket to the upstream unit at [B] (
x1).
12. Tighten the screws (
x3).
13. Re-attach the rear covers.
