Booklet Stapler Unit
D373/D374 20 SM

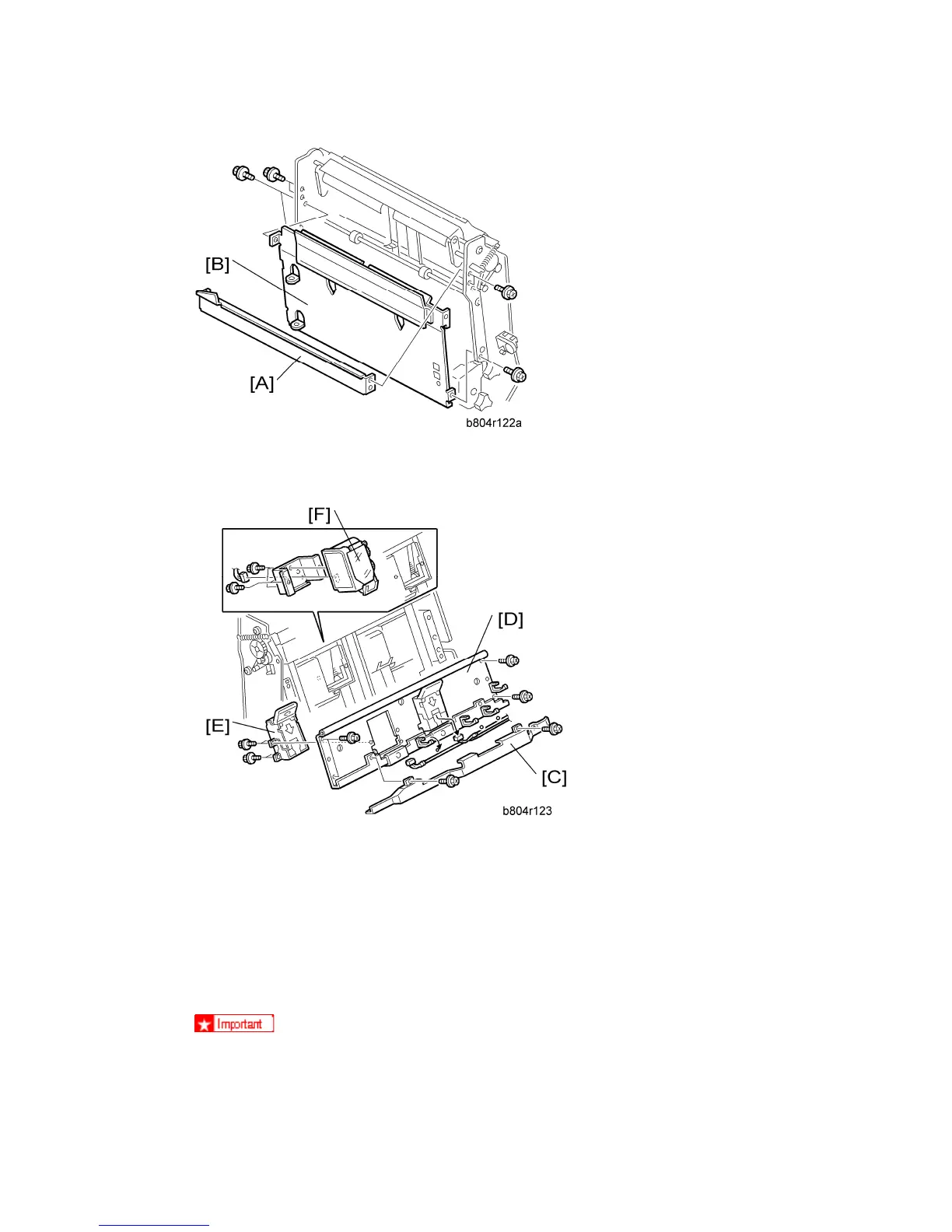

3. Stay [A] ( x4).
4. Left plate [B] ( x4)
5. Harness cover [C] ( x2)
6. Booklet stapler support stay [D] ( x4, x2, = x4)
7. Booklet stapler [E] ( x4)
8. Booklet stapler motor [F] ( x2, x1)
To Reattach the Booklet Stapler Motor
1. Reattach the booklet stapler motor.
Do not tighten the screws.
To Next Page
