Ricoh D065 - Page 958

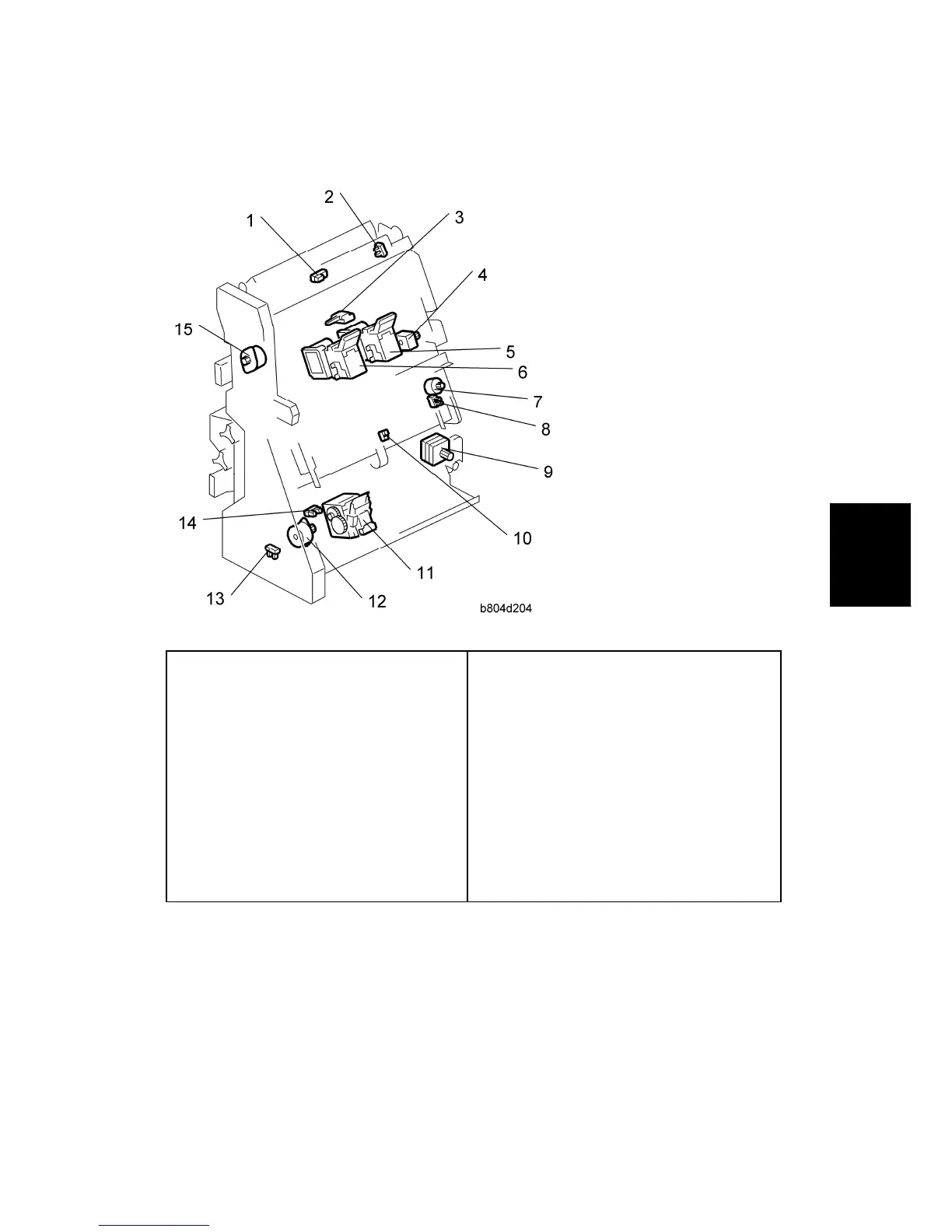

Component Layout
SM 27 D373/D374
Finisher
D373/D374
Stacker/Stapler - B804/B805
1. Stack Present Sensor (S32)*
1
2. Stack Junction Gate HP Sensor (S27)*
1
3. Stack Feed Out Belt HP Sensor (S16)
4. Feed Out Belt Motor (M5)
5. Booklet Stapler EH185R – Rear (M23)*
1
6. Booklet Stapler EH185R – Front
(M22)*
1
7. Jogger Fence Motor (M15)
8. Jogger Fence HP Sensor (S15)
9. Corner Stapler Movement Motor (M6)
10. Stapling Tray Paper Sensor (S14)
11. Corner Stapler EH530 (M20)
12. Corner Stapler Rotation Motor (M13)
13. Corner Stapler HP Sensor (S17)
14. Stapler Rotation HP Sensor (S18)
15. Stack Junction Gate Motor (M17) *
1
*
1
: B804 Only
