Ricoh K-C3 - Image Transfer; Image Transfer Roller

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
93
Image Transfer
Image Transfer Roller
 Do not touch the transfer roller surface with bare hands

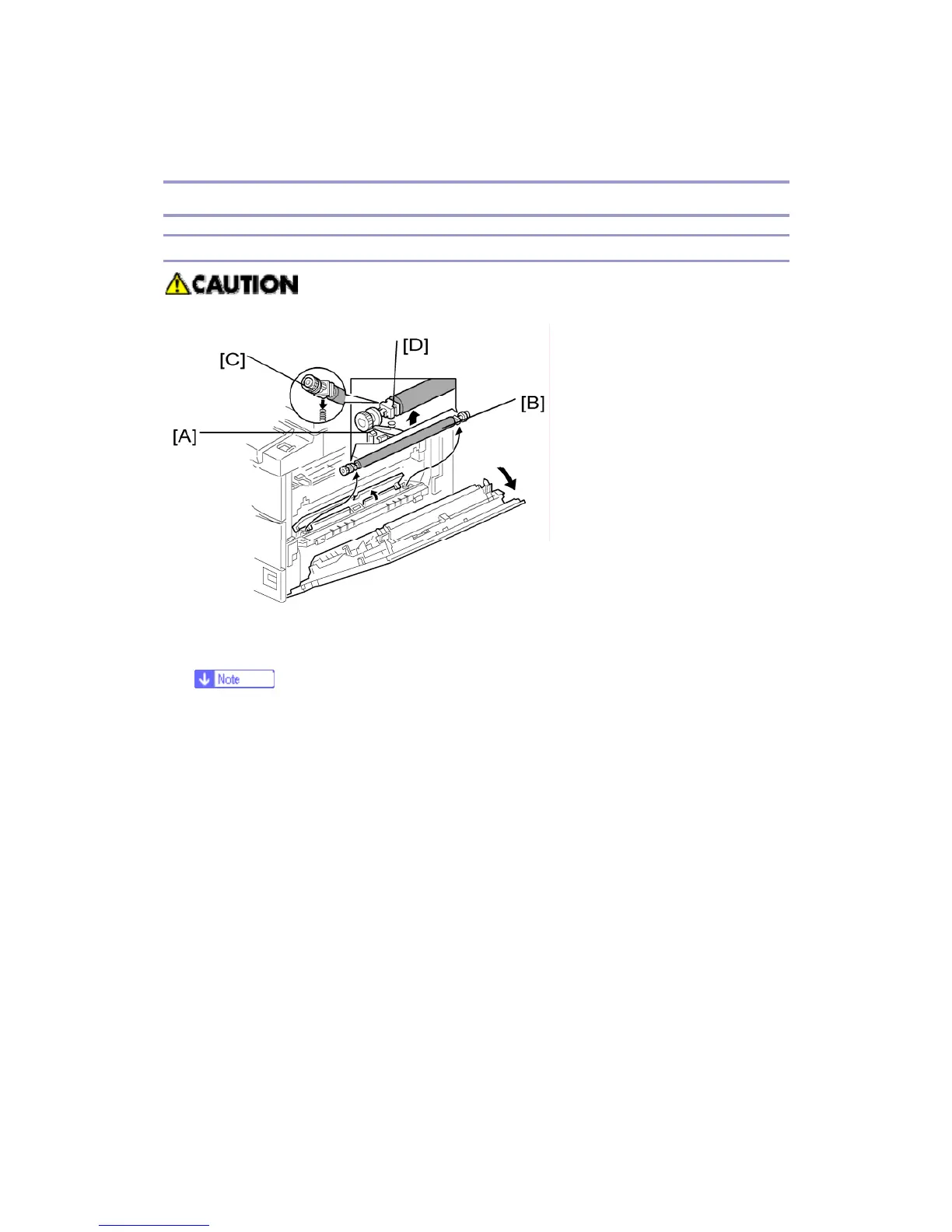

1. Open the right door.
2. Lift the plastic holders [A] with the image transfer roller [B].
 Leave the springs under the holders. Make sure that the pegs [C] on the holders
[D] engage with the springs when you reassemble.
