Ricoh K-C3 - Rear Exhaust Fan (B269;B277 Only); Left Exhaust Fan

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
106

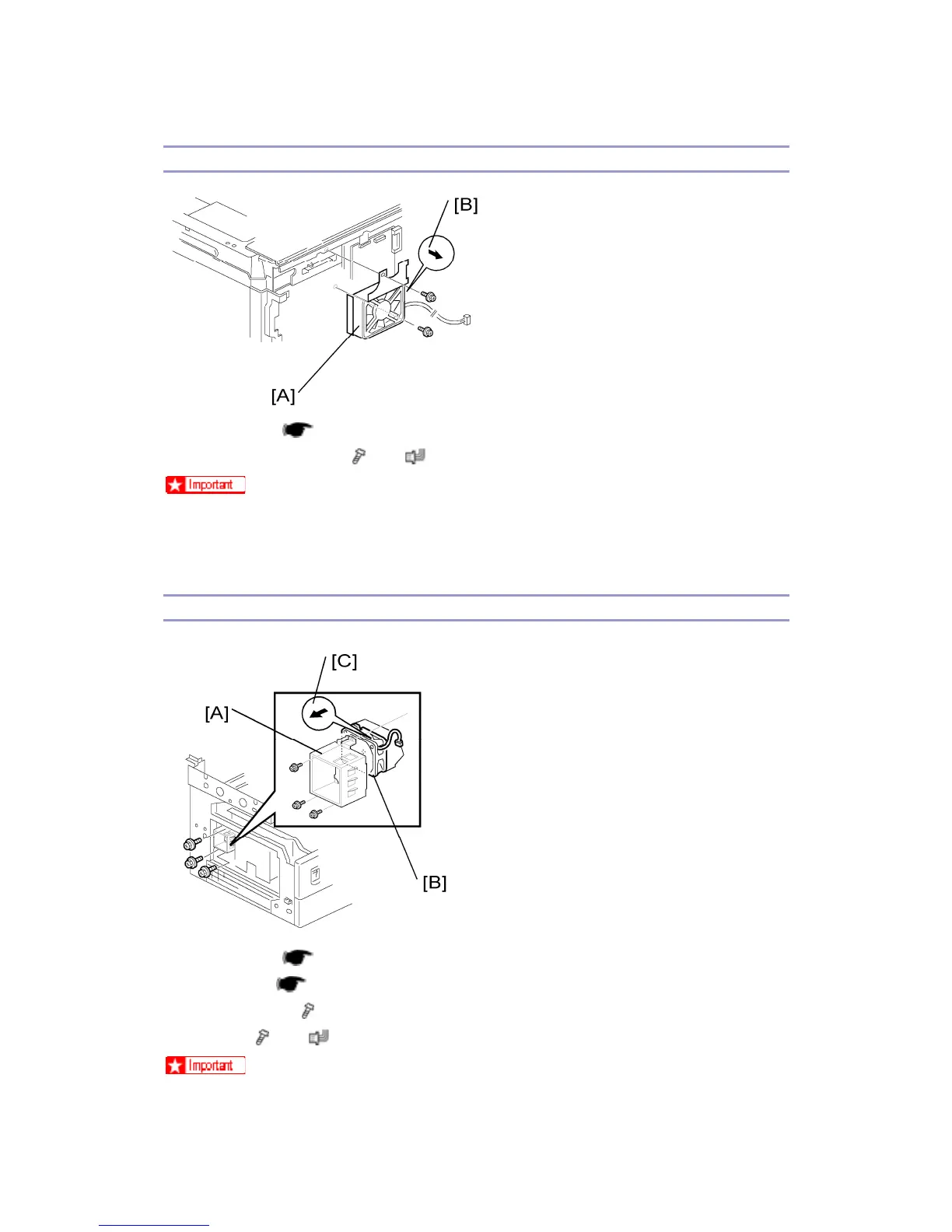

Rear Exhaust Fan (B269/B277 Only)
1. Rear cover (
p.54)
2. Rear exhaust fan [A] (
x 2, x 1)
 Reassembling -
 Make sure that the arrow on the fan [B] points the outside of the copier when you
reassemble The arrow indicates the direction of the air current.
Left Exhaust Fan
1. Rear cover ( p.54)
2. Left cover (
p.56)
3. Fan cover [A] (
x 3)
4. Fan [B] (
x 3, x 1)
 Reassembling -
