B245/B276/B277/B268/B269 Service Manual 18-Jan-06
4
Do not install the machine at any location over 2,000 m (6,500 ft.) above sea level.
Place the machine on a strong and level base. (Inclination on any side should be no
more than 5 mm.)
Do not place the machine where it is subjected to strong vibrations.
Machine Level
Front to back: Within 5 mm (0.2") of level
Right to left: Within 5 mm (0.2") of level

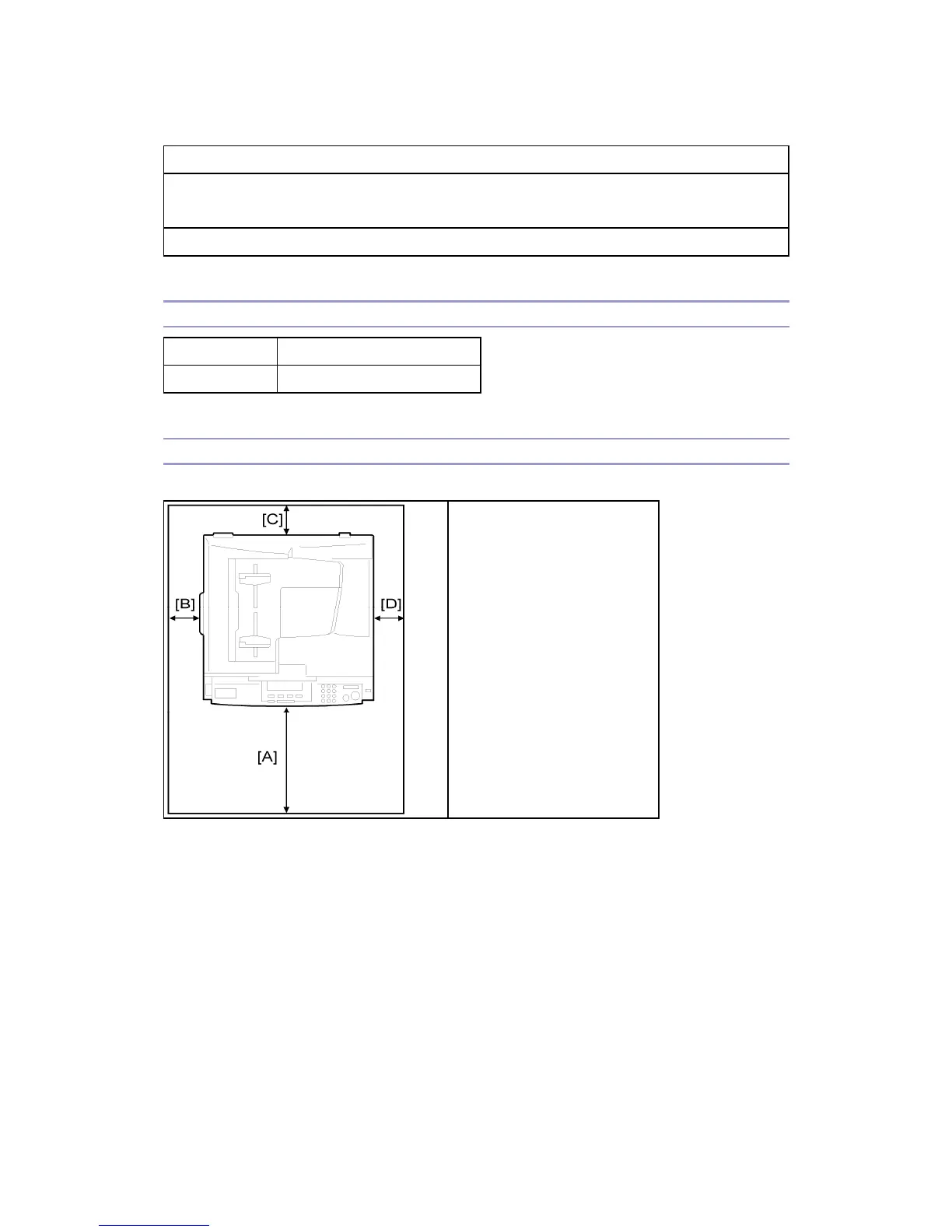

Minimum Space Requirements
Place the copier near the power source, providing clearance as shown:
A (front): 750 mm (30")
B (left): 150 mm (6")
C (rear): 50 mm (2")
D (right): 250 mm (10")
The recommended 750 mm front space is sufficient to allow the paper tray to be pulled out.
Additional front space is required to allow operators to stand at the front of the machine.
