Ricoh K-C3 - OPC Drum

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
78

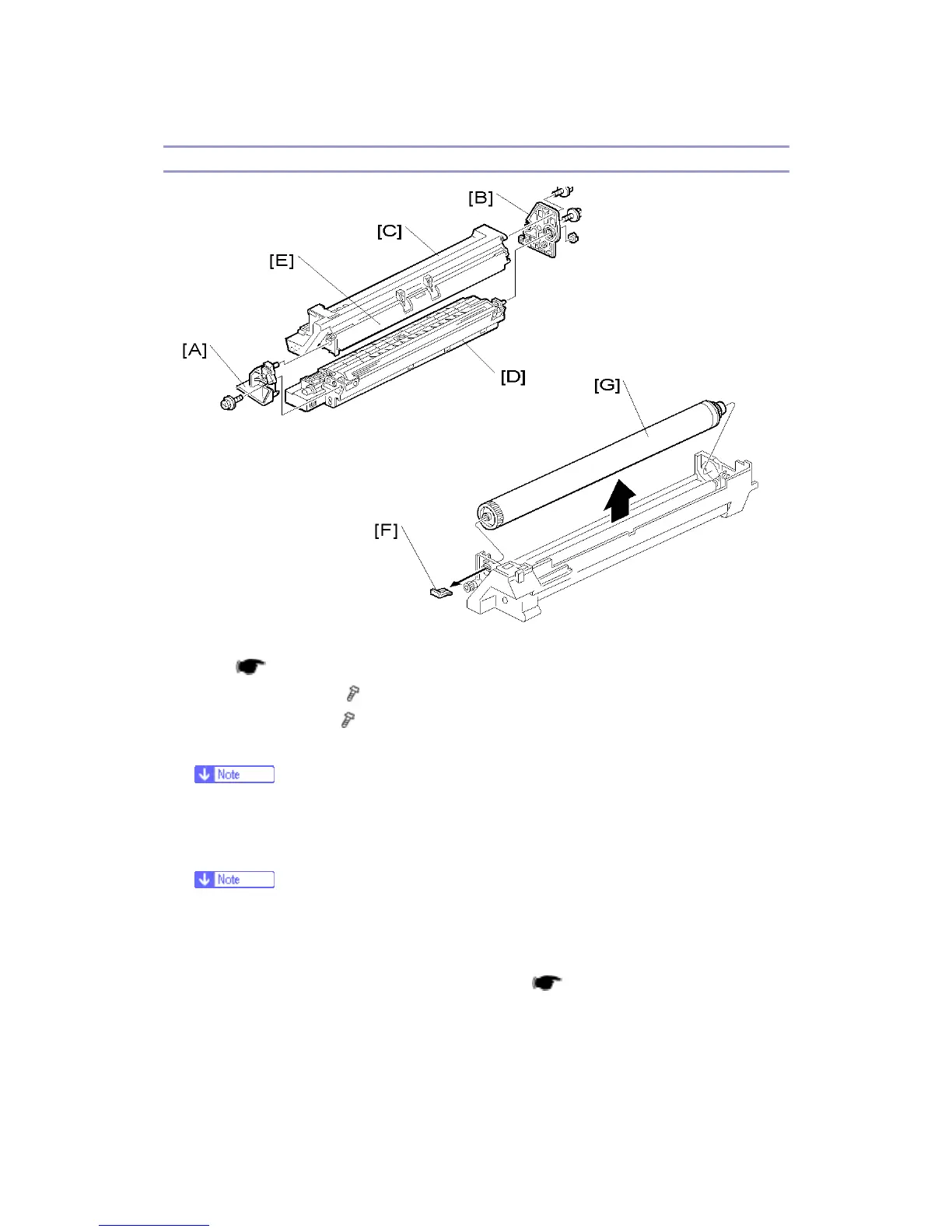

OPC Drum
1. PCU ( p.76)
2. Front side piece [A] (
x 1)
3. Rear side piece [B] (
x 2, 1 coupling)
4. Separate the drum section [C] from the developer section [D].
 To ensure that the left-side gears line up, keep the drum cover [E] closed when
reinserting the front side piece.
5. Pry out the drum retaining clip [F].
 Install the clip in the same orientation (with the lip facing away from the drum
shaft) when you reassemble.
6. OPC drum [G]
7. When reassembling, adjust the image quality (
p.81).
