Ricoh K-C3 - Hot Roller Stripper Pawls; Hot Roller

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
97

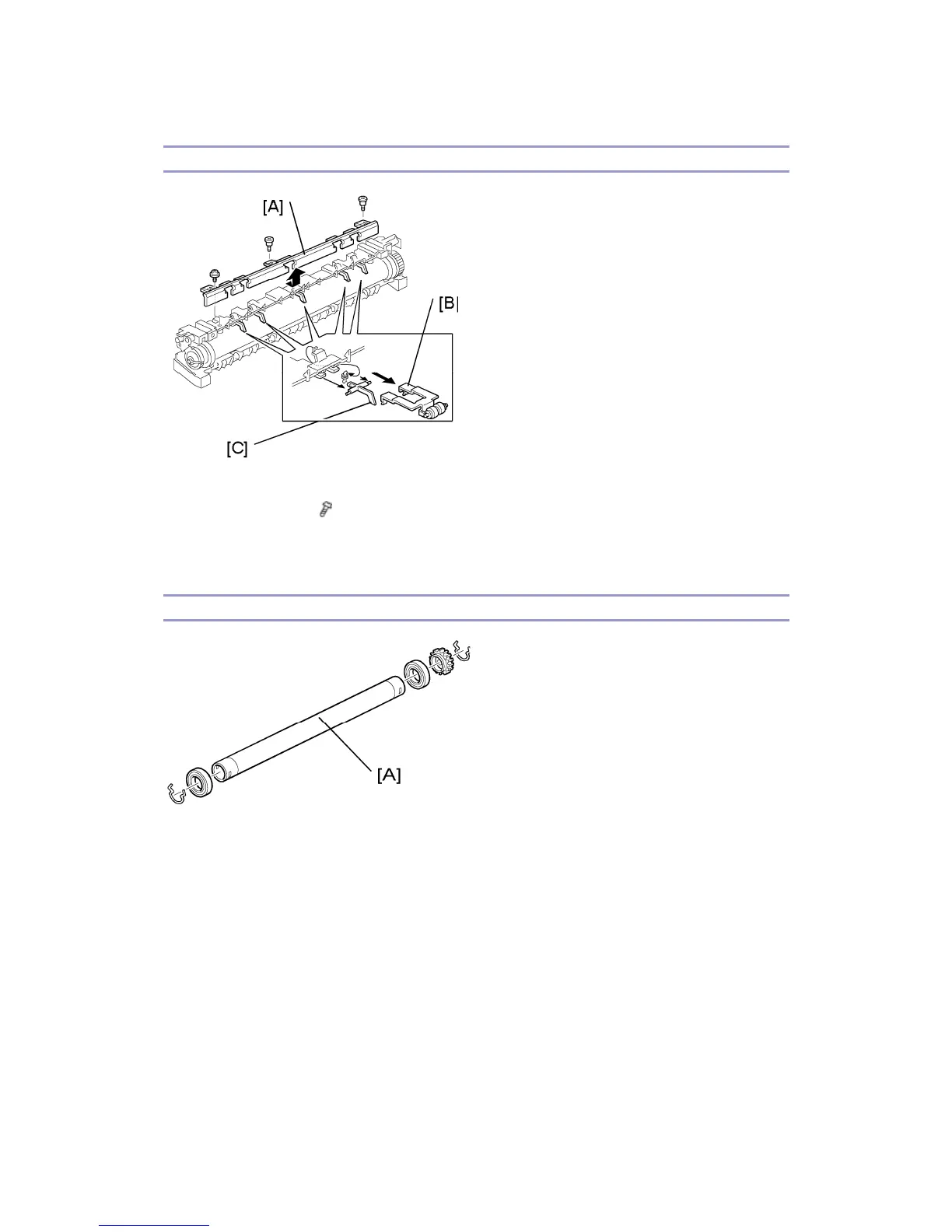

Hot Roller Stripper Pawls
1. Hot roller section (See above)
2. Roller guard [A] (
x 3)
3. Metal holders [B] (1 holder for each)
4. Hot roller stripper pawls [C] (1 spring for each)
Hot Roller
1. Hot roller stripper pawls (See above)
2. Hot roller [A] (2 C-rings, 1 gear, 2 bearings)
