Ricoh K-C3 - Scanner Home Position Sensor

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
66

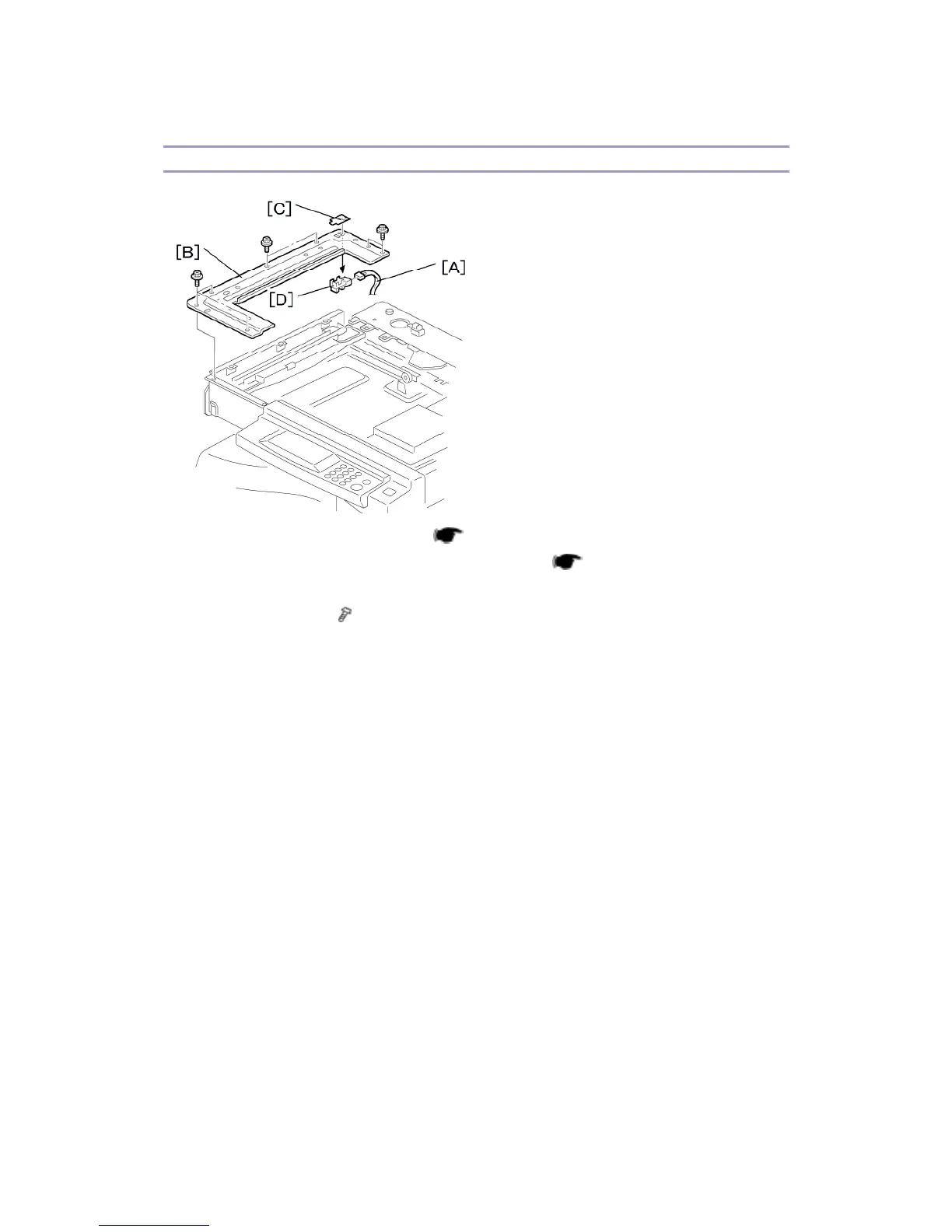

Scanner Home Position Sensor
1. Left upper cover, top rear cover ( p.55)
2. Exposure glass, DF exposure glass (if installed) (
p.61)
3. Disconnect the connector [A].
4. Scanner left lid [B] (
x 7)
5. Sensor tape [C].
6. Scanner home position sensor [D]
