B245/B276/B277/B268/B269 Service Manual 18-Jan-06
245

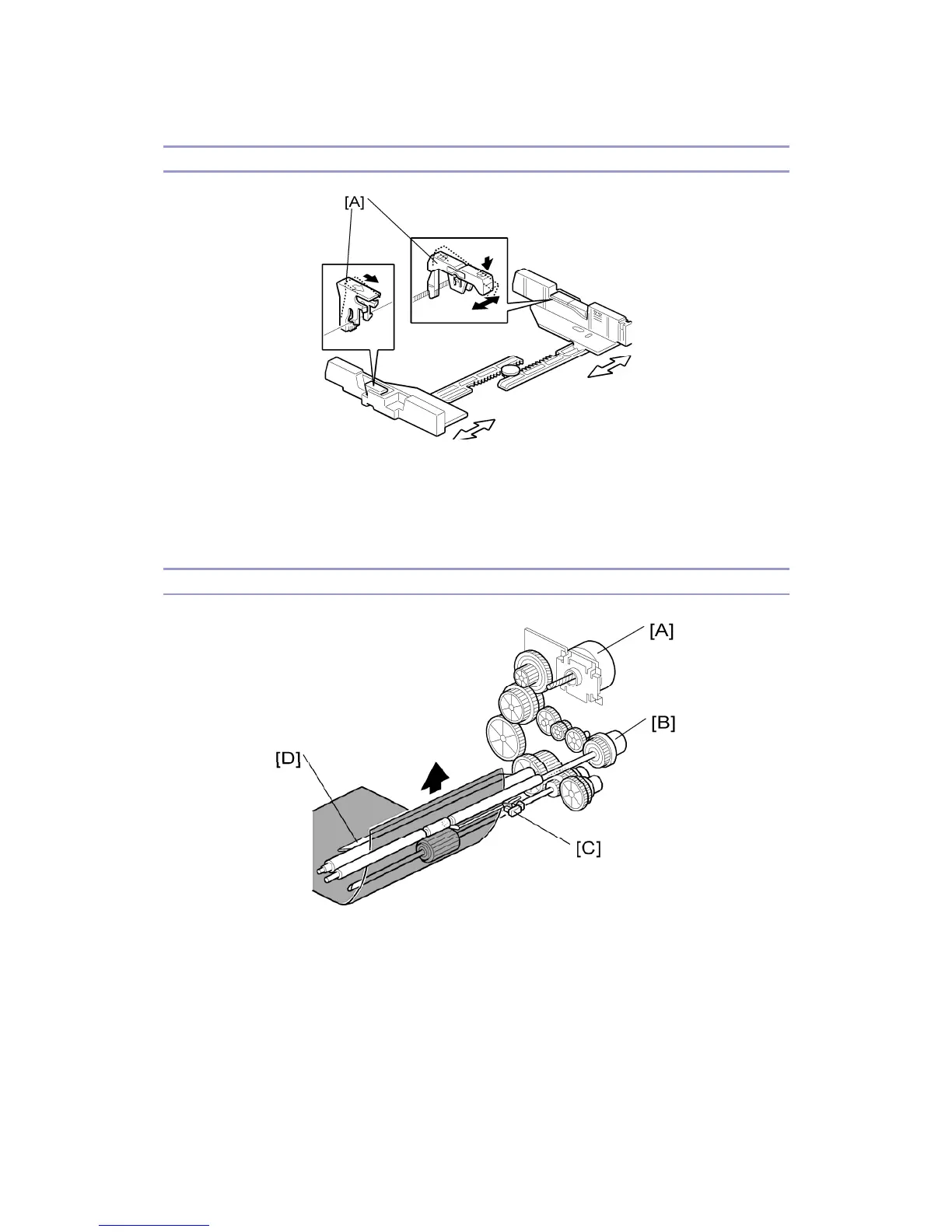

Side Fences
If the tray is full of paper and it is pushed in strongly, the fences may deform or bend. This
may cause the paper to skew or the side-to-side registration to be incorrect. To correct this,
each side fence has a stopper [A] attached to it. Each side fence can be secured with a screw,
for customers who do not want to change the paper size.
Paper Registration
The drive from the main motor [A] is transmitted to the registration roller through the
registration clutch gear [B].
The registration sensor [C] is used for correcting paper skew and for detecting paper
misfeeds.
The cleaning mylar [D] contacts the registration roller. It removes paper dust from the
registration roller so that this dust will not transfer into the development unit through the
drum-cleaning unit.
