Ricoh K-C3 - LD Unit; Polygonal Mirror Motor

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
73

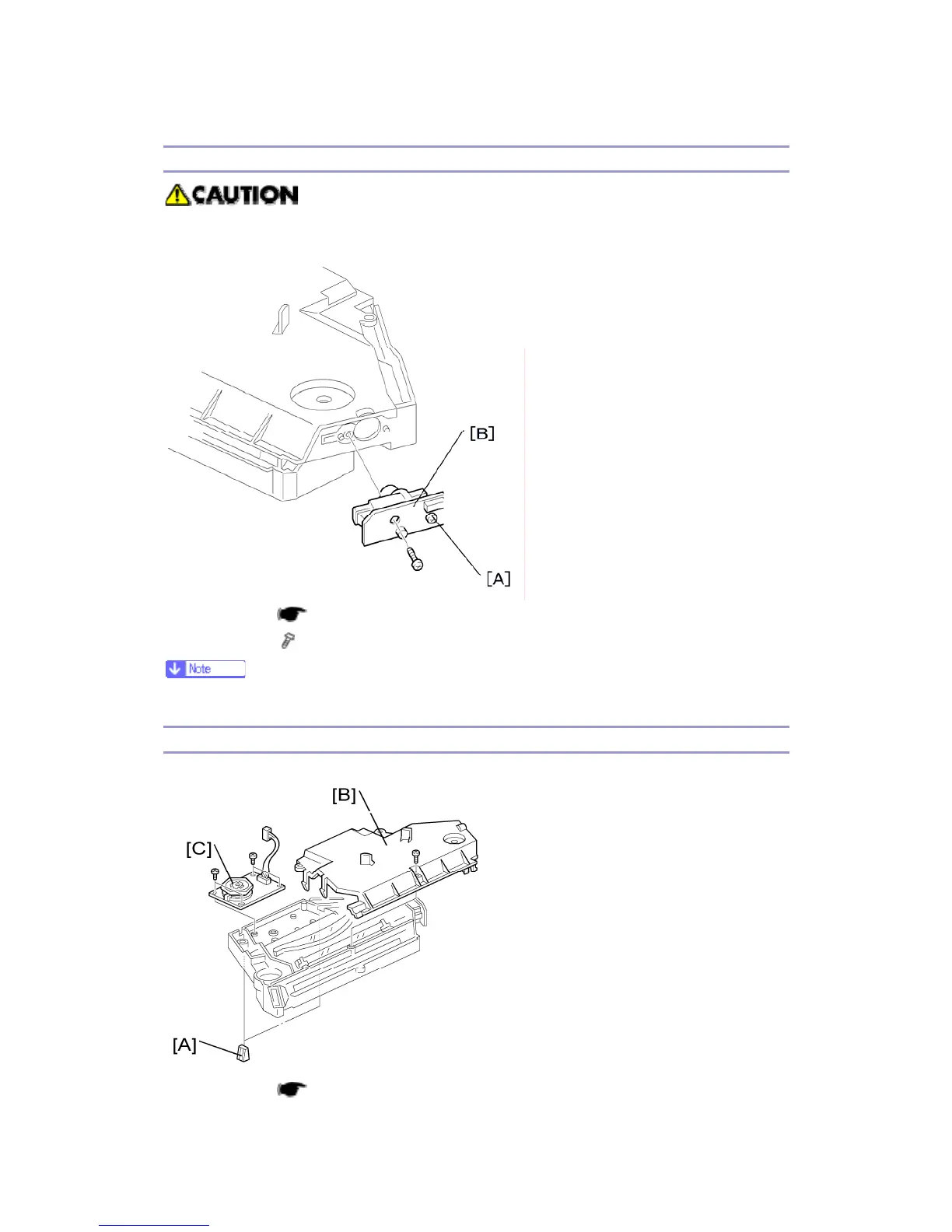

LD Unit
 Do not touch the paint-locked screw [A]. The LD position is adjusted before
shipment.
1. Laser unit (
p.71)
2. LD unit [B] (
x 1)
 Do not screw the LD unit in too tightly when you install it.
Polygonal Mirror Motor
1. Laser unit (
p.71)
