4. Exit sensor bracket [E] (
x 1)
5. Exit sensor [F] (
x 1)
By-Pass Feed Roller and Paper End Sensor
1. By-pass tray (
p.58)
 If you have a support to keep the by-pass tray within the reach of the connector
cable, you do not need to disconnect the connector. When you do so, use
caution not to place too much load on the cable.

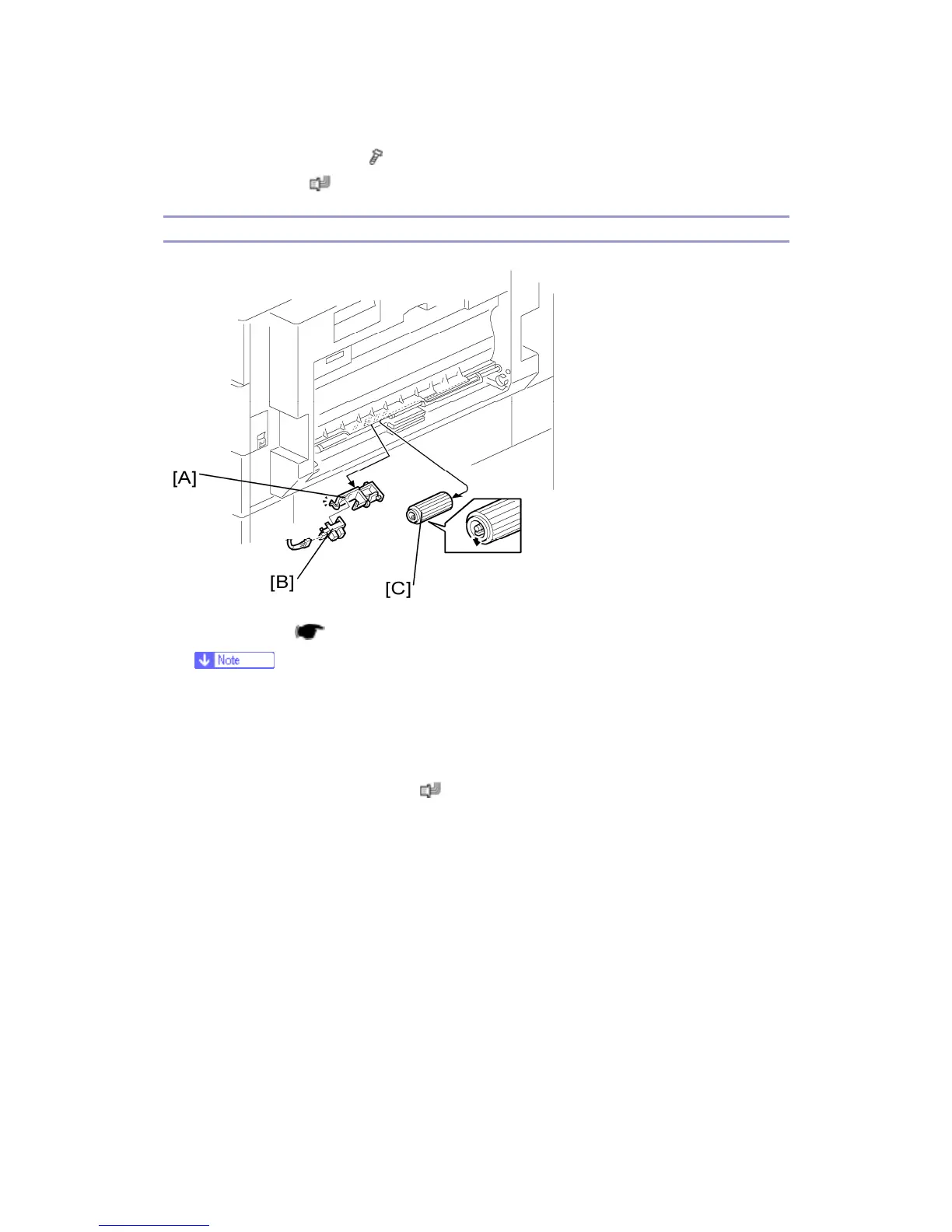

2. Sensor holder [A]
3. By-pass paper end sensor [B] (
x 1)
4. By-pass feed roller [C]
