B245/B276/B277/B268/B269 Service Manual 18-Jan-06
259

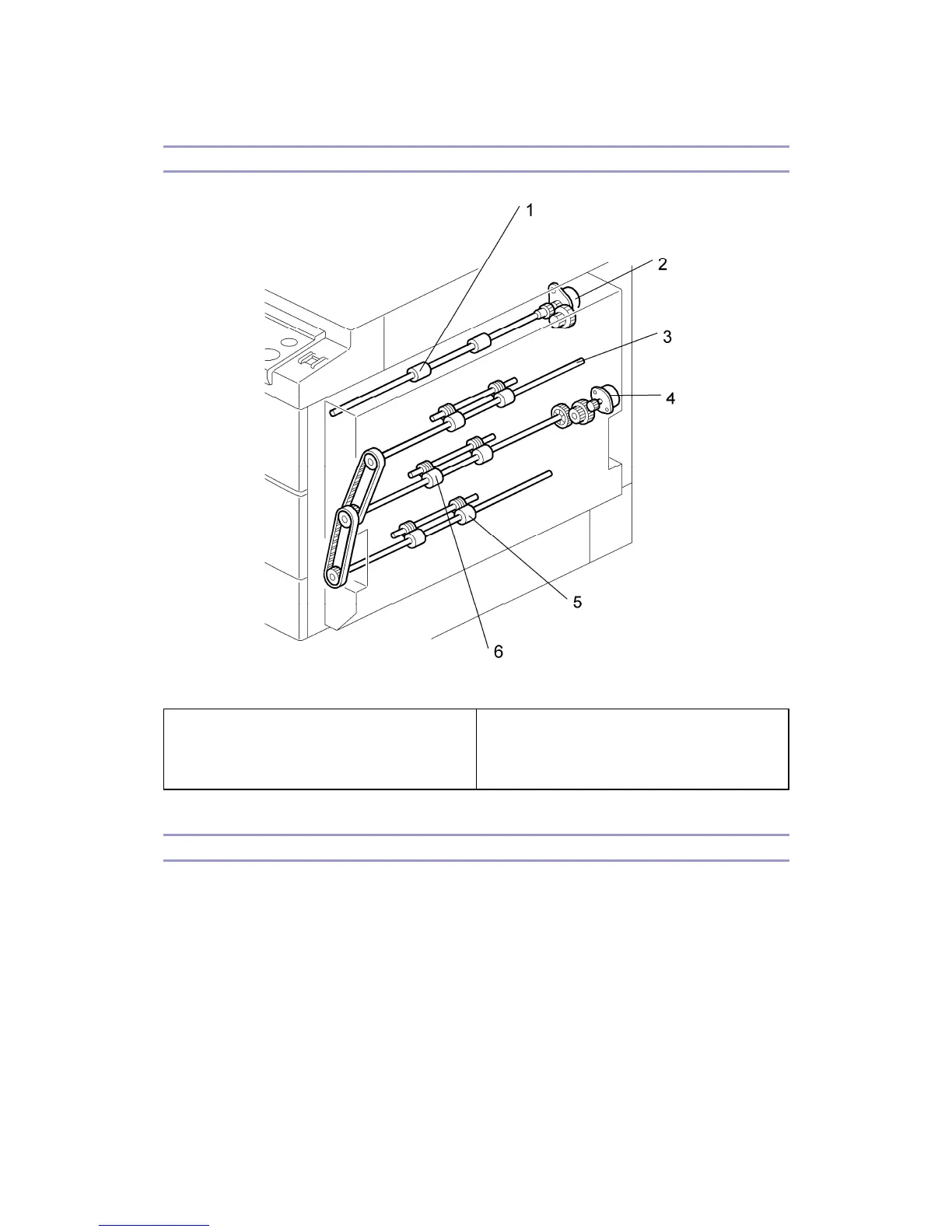

Drive Mechanism
1. Duplex Inverter Roller
2. Duplex Inverter Motor
3. Upper Transport Roller
4. Duplex Transport Motor
5. Lower Transport Roller
6. Middle Transport Roller
Basic operation
To increase the productivity of the duplex unit, copies are printed as follows.
- Larger than A4 Short-edge/LT Short-edge -
The paper feed path can hold only one sheet of copy paper at a time.
Example: 8 pages. The number [A] in the illustration shows the order of pages. The number
[B] in the illustration shows the order of sheets of copy paper (if black, this indicates the
second side).
