B245/B276/B277/B268/B269 Service Manual 18-Jan-06
62

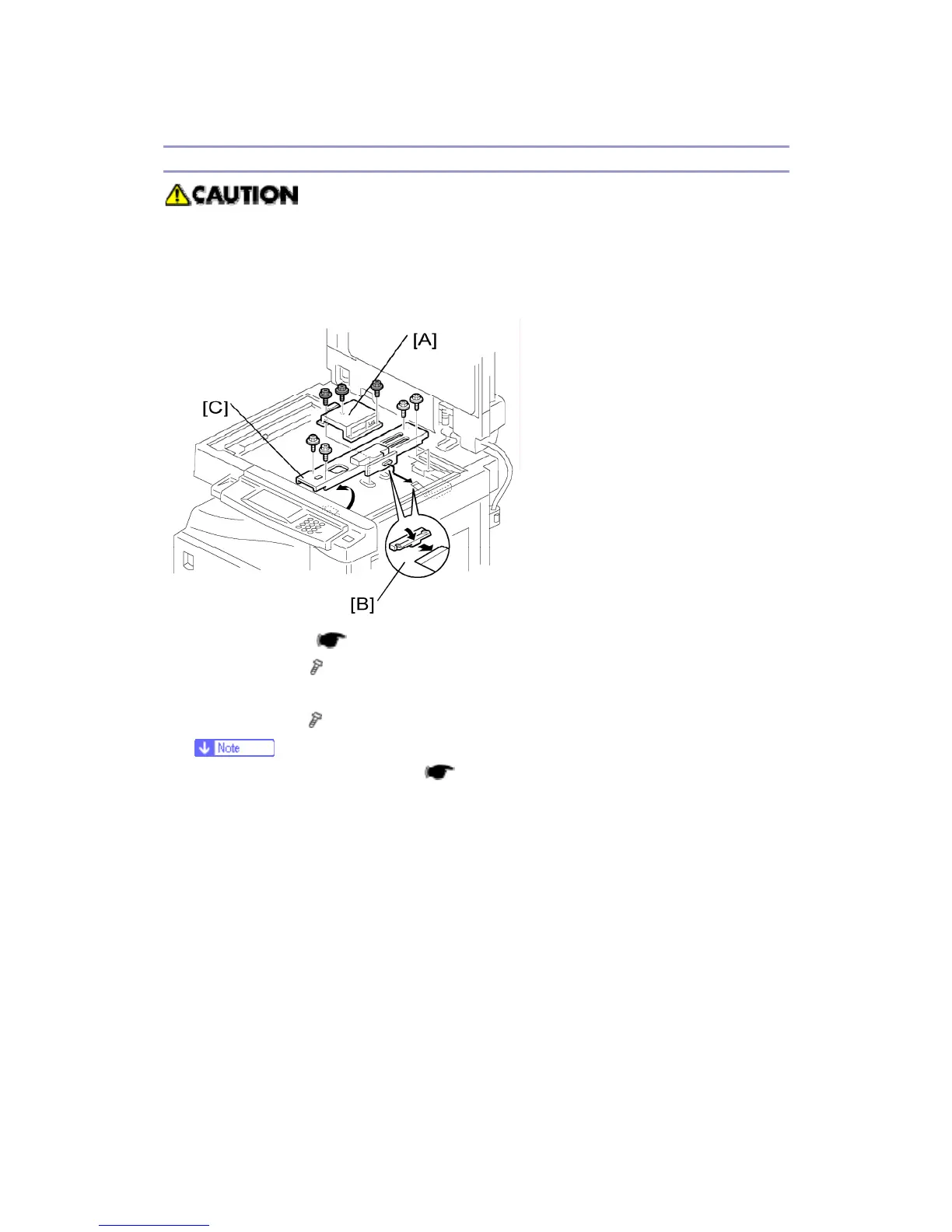

Lens Block
 Do not touch the paint-locked screws on the lens block. The position of the lens
assembly (black part) is adjusted before shipment.
 Do not grasp the PCB or the lens assembly when you handle the lens block. The
lens assembly may slide out of position.
1. Exposure glass ( p.61)
2. Lens cover [A] (
x 5)
3. Disconnect the flat cable [B].
4. Lens block [C] (
x 4).
 Adjust the image quality (
p.111) after you install a new lens block.
