Ricoh K-C3 - Registration Roller

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
87

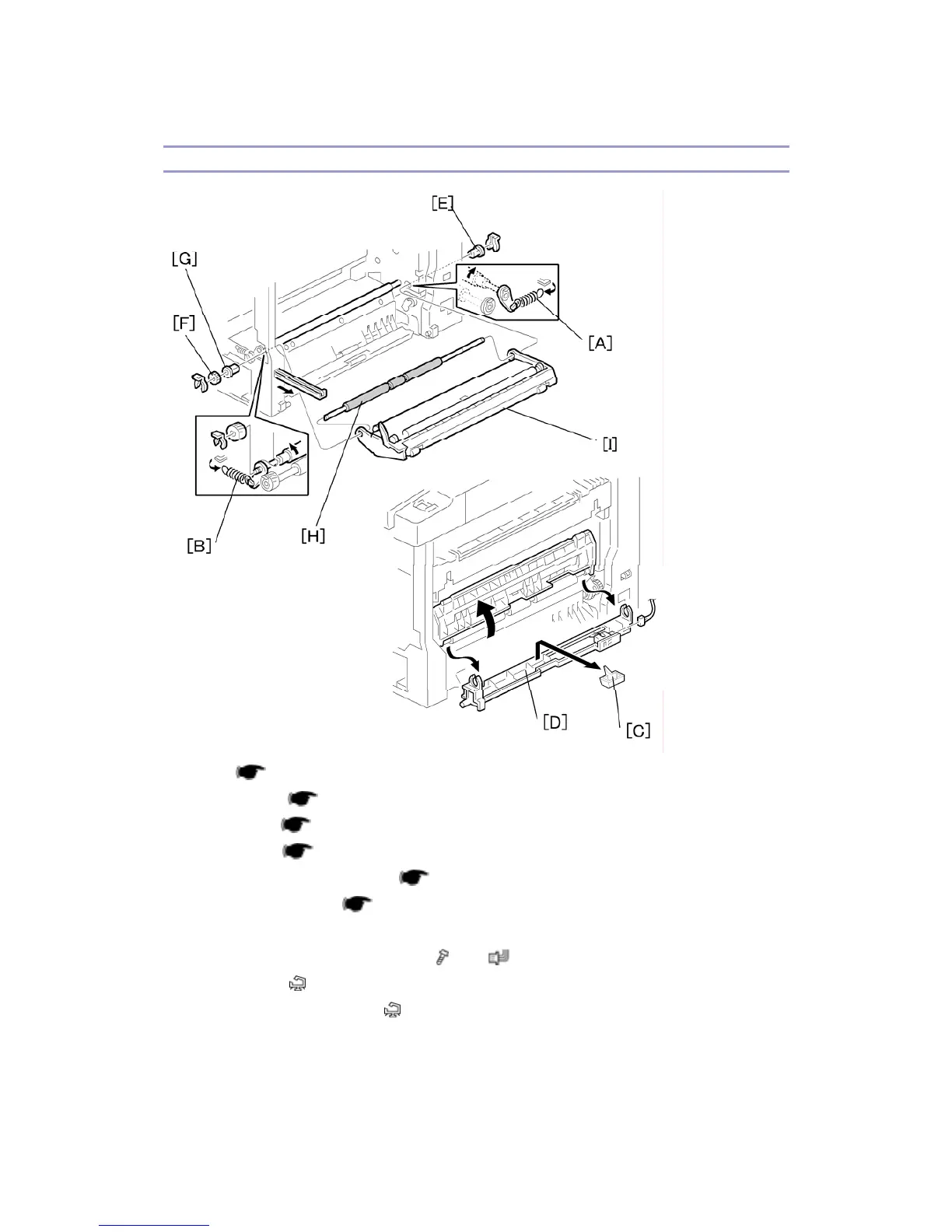

Registration Roller
1. PCU (
p.76)
2. Front cover (
p.56)
3. Right door (
p.58)
4. Rear cover (
p.54)
5. High-voltage power supply (
p.89)
6. Registration clutch (
p.89)
7. Unhook the springs [A] and [B] at the rear and front sides.
8. Guide support [C] and guide [D] (
x 1, x 1)
9. Bushing [E] (
x 1)
10. Gear [F] and bushing [G] (
x 1)
11. Registration roller [H] with the image transfer unit [I]
