B245/B276/B277/B268/B269 Service Manual 18-Jan-06
29
One-Bin Tray Installation
Accessory Check
Check the quantity and condition of the accessories.
No. Description Q’ty
1 Installation procedure 1
2 One-bin sorter 1
3 Exit tray 1
4 Tapping screw M3 x 6 1
Installation Procedure
Unplug the machine power cord before starting the following procedure.

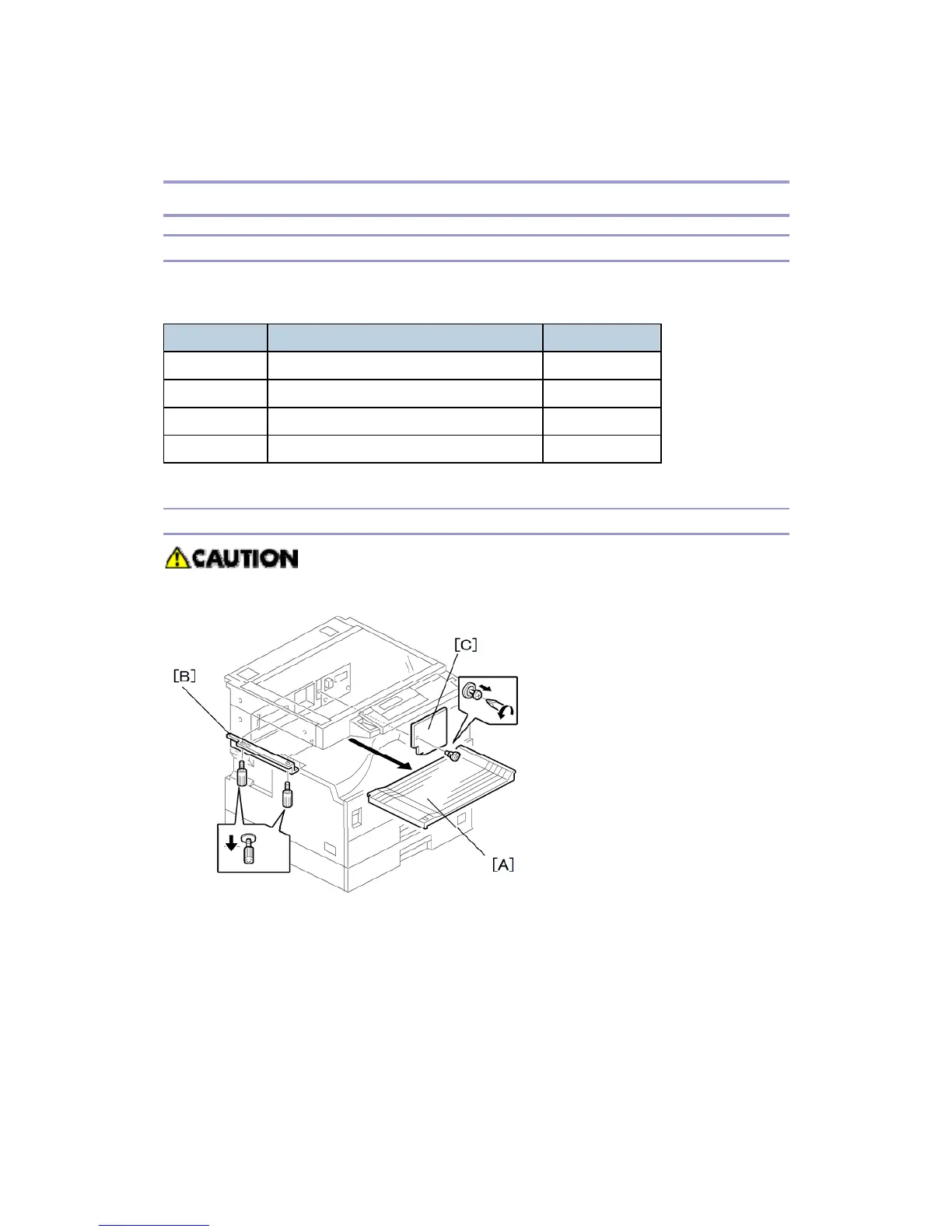

1. Remove the inverter tray [A].
2. Remove the rail [B] (2 knob screws).
3. Remove the cover [C] (1 rivet).
To Next Page
