B245/B276/B277/B268/B269 Service Manual 18-Jan-06
250
Paper Separation Mechanism

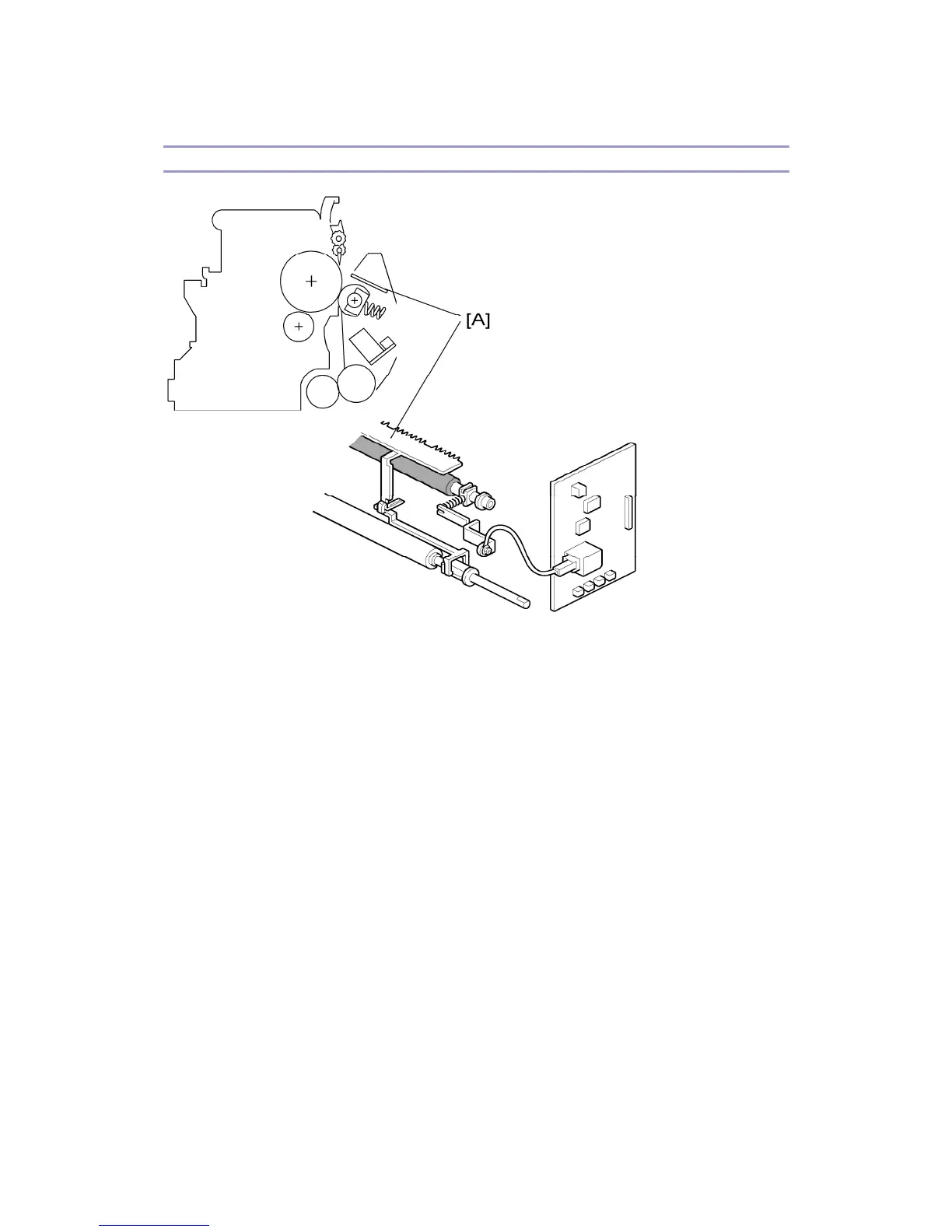

The discharge plate [A] and the drum curvature of the drum help the paper to separate away
from the drum. The discharge plate is grounded.
