Exterior Covers & Operation Panel

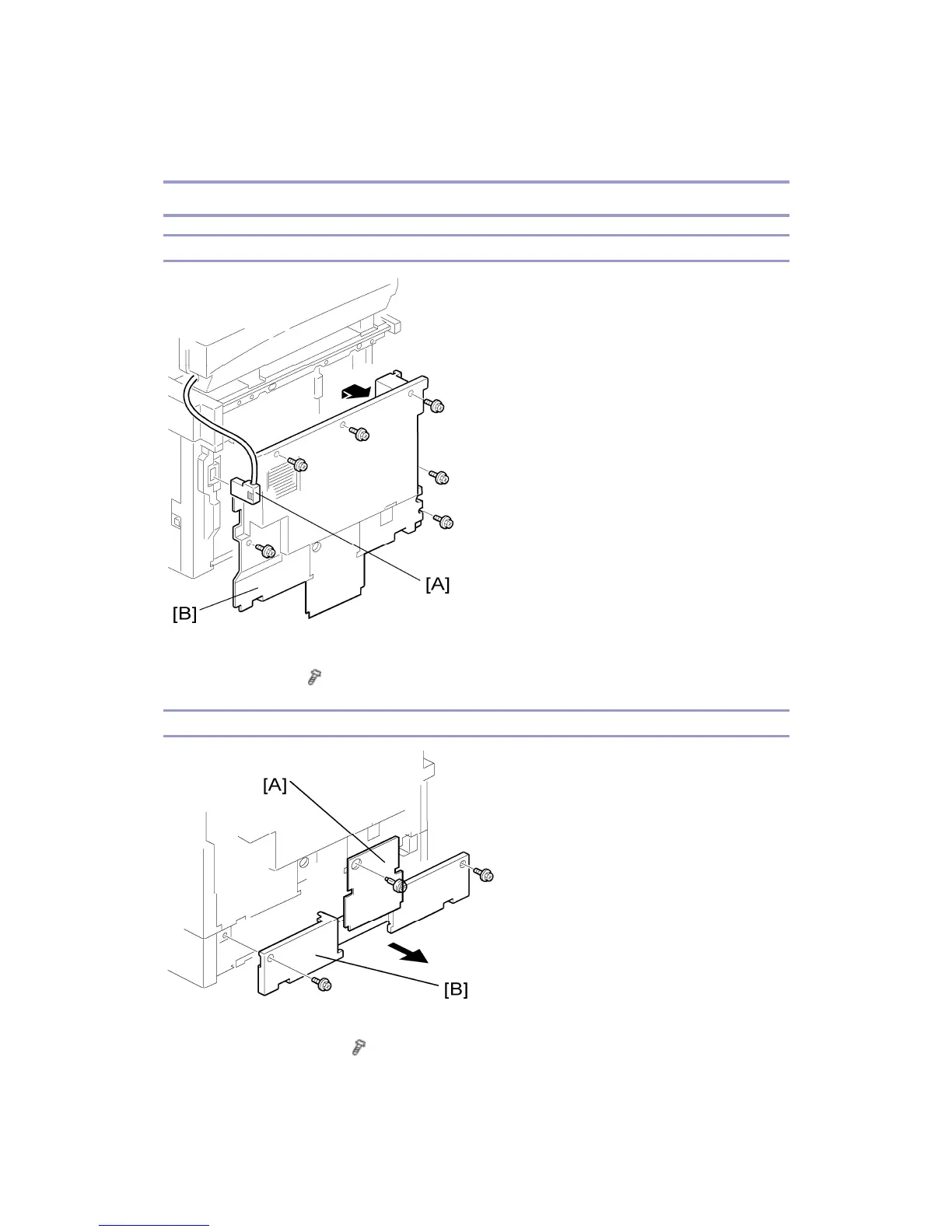

Rear Cover
1. Unplug the DF cable [A] (if installed).
2. Rear cover [B] (
x 6)
Rear Lower Cover (Two-tray Models Only)
1. Rear cover (see above) or tray harness cover [A] (1 rivet).
2. Rear lower cover [B] (
x 2)
