Ricoh K-C3 - Tray Heaters; Upper Tray Heater

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
33
Tray Heaters
 Unplug the machine power cord before starting the following procedure.

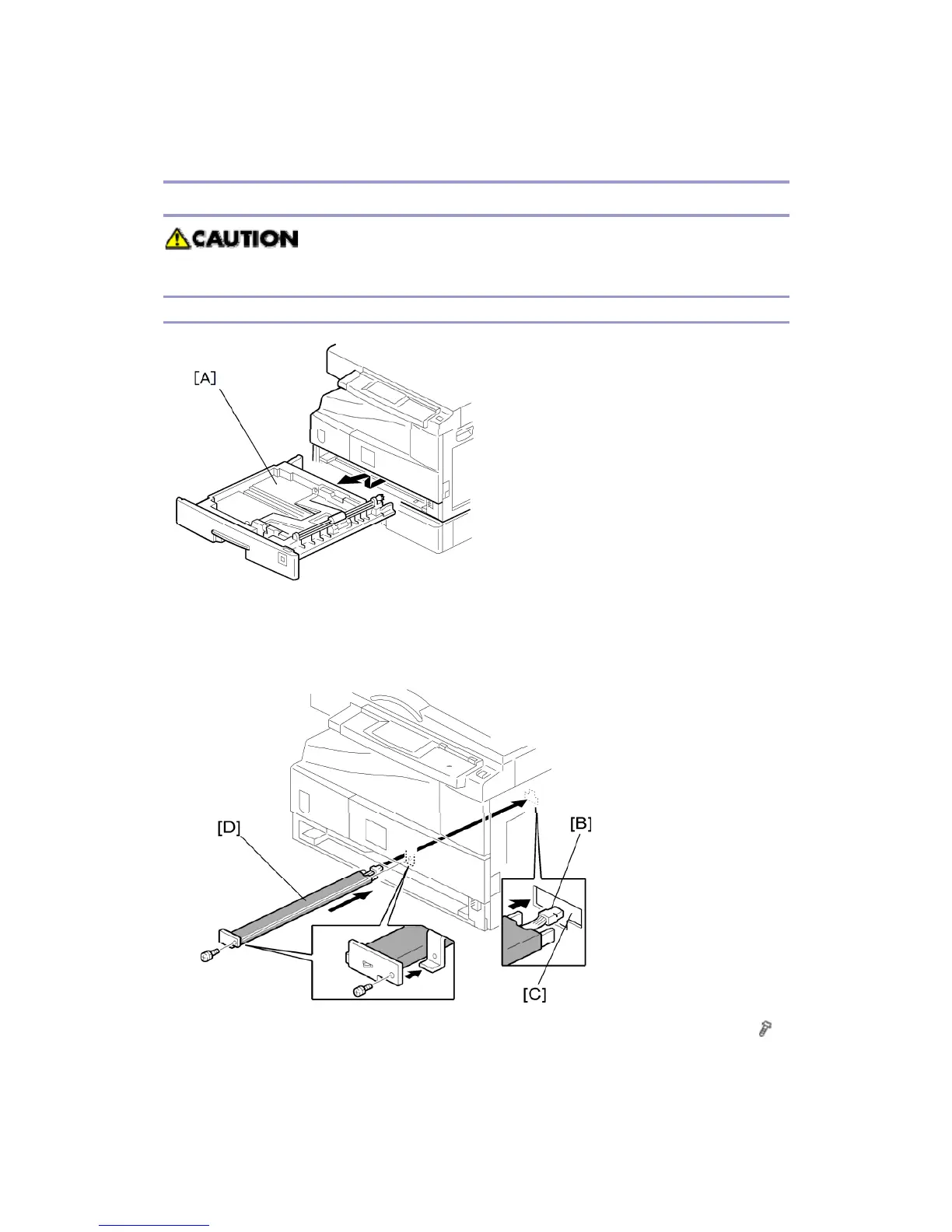

Upper Tray Heater
1. Remove the 1st tray cassette [A].
2. Remove the rear cover.
3. Pass the connector [B] through the opening [C] and install the tray heater [D] (
x
1).
