B245/B276/B277/B268/B269 Service Manual 18-Jan-06
34

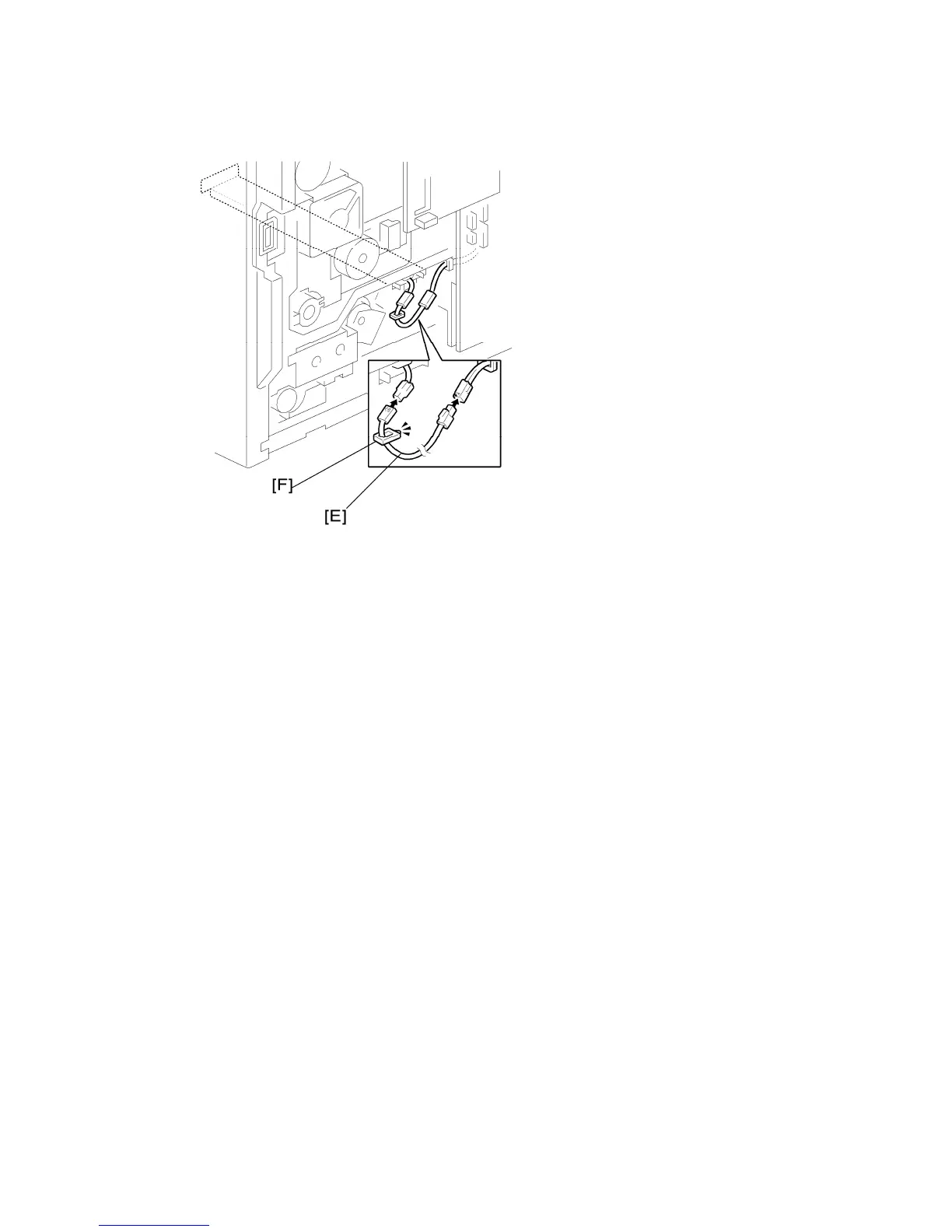

4. Install the relay harness [E].
5. Fix the harness with the clamp [F].
6. Reinstall the 1st tray cassette and the rear cover.
