Ricoh K-C3 - Left Lower Cover (Two-Tray Models Only); Right Lower Cover (Two-Tray Models Only)

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
59
procedure) and disconnect the connector (5-pin connector with colored wires).
4. Cable holder [A] (B269/B277 only)
5. Front-side clip ring [B]
6. Front-side pin [C] (You can push the pin from behind the right door.)
7. Front-side tray holder arm [D]
8. Remove the rear-side clip ring, pin, and tray holder arm in the same manner.
9. By-pass tray [E]

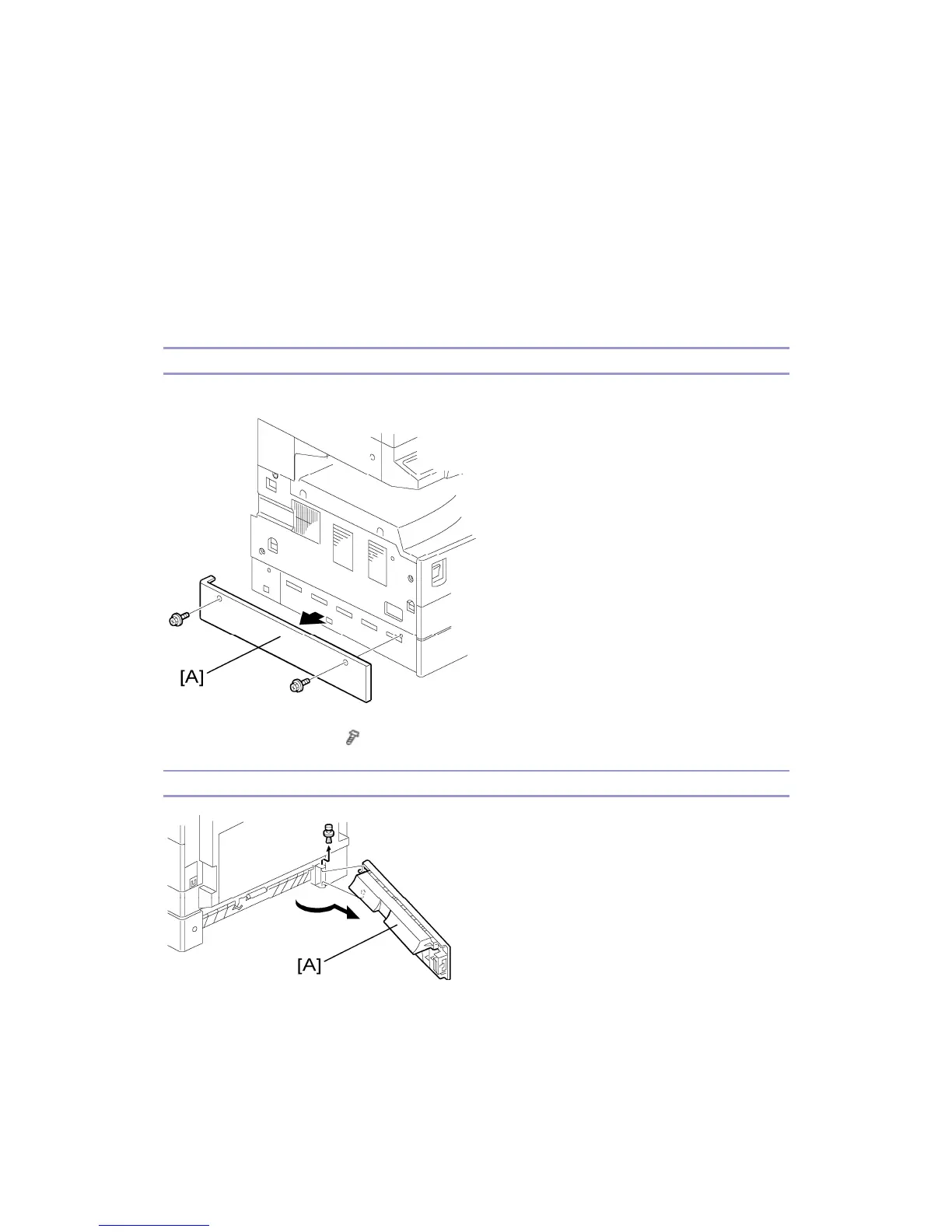

Left Lower Cover (Two-tray Models Only)
1. Left lower cover [A] ( x 2)
Right Lower Cover (Two-tray Models Only)
1. Right lower cover [A] (1 pin)
