B245/B276/B277/B268/B269 Service Manual 18-Jan-06
96

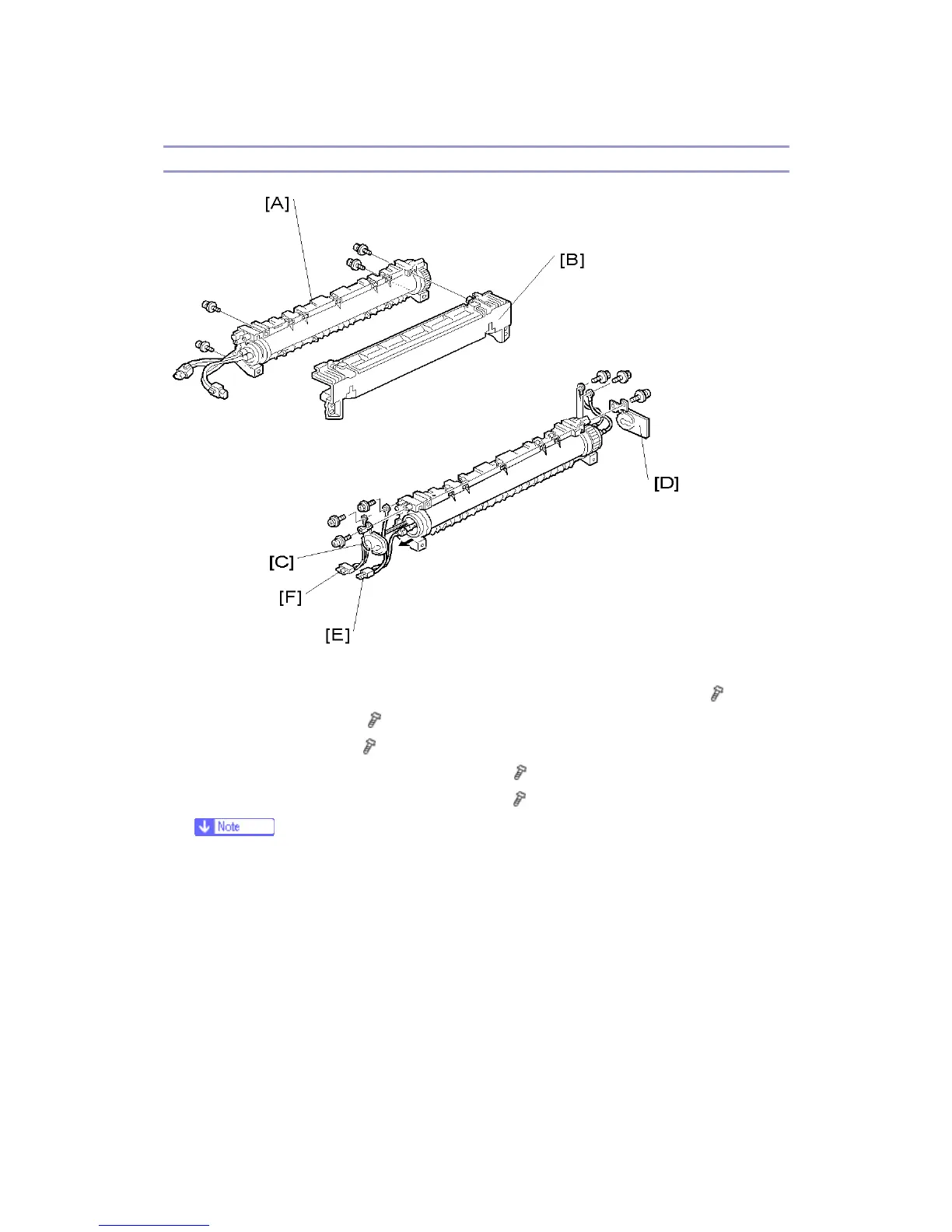

Fusing Lamps
1. Fusing unit
2. Separate the hot roller section [A] from the pressure roller section [B] (
x 4).
3. Front holding plate [C] (
x 1)
4. Rear holding plate [D] (
x 1)
5. Fusing lamp with the connector (600W) [E] (
x 2)
6. Fusing lamp with the connector (550W) [F] (
x 2)
Check that the front ends of the two lamps fit in the front holding plate when you
reassemble. They do not fit in there if you arrange the two lamps incorrectly.
