Drive

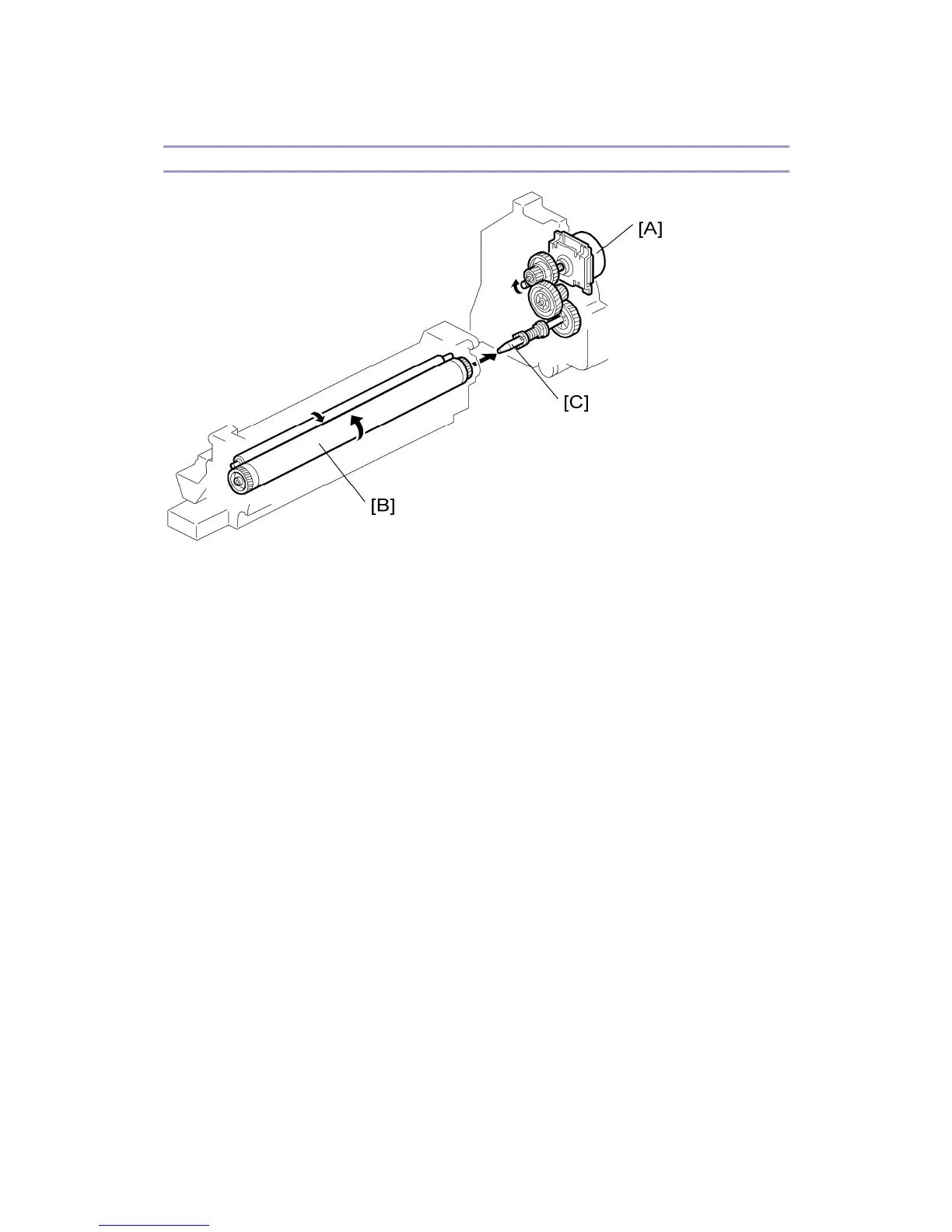

The main motor [A] drives the drum [B] through a series of gears and the drum drive shaft [C].
The main motor assembly includes a drive controller, which outputs a motor lock signal when
the rotation speed is out of the specified range.
