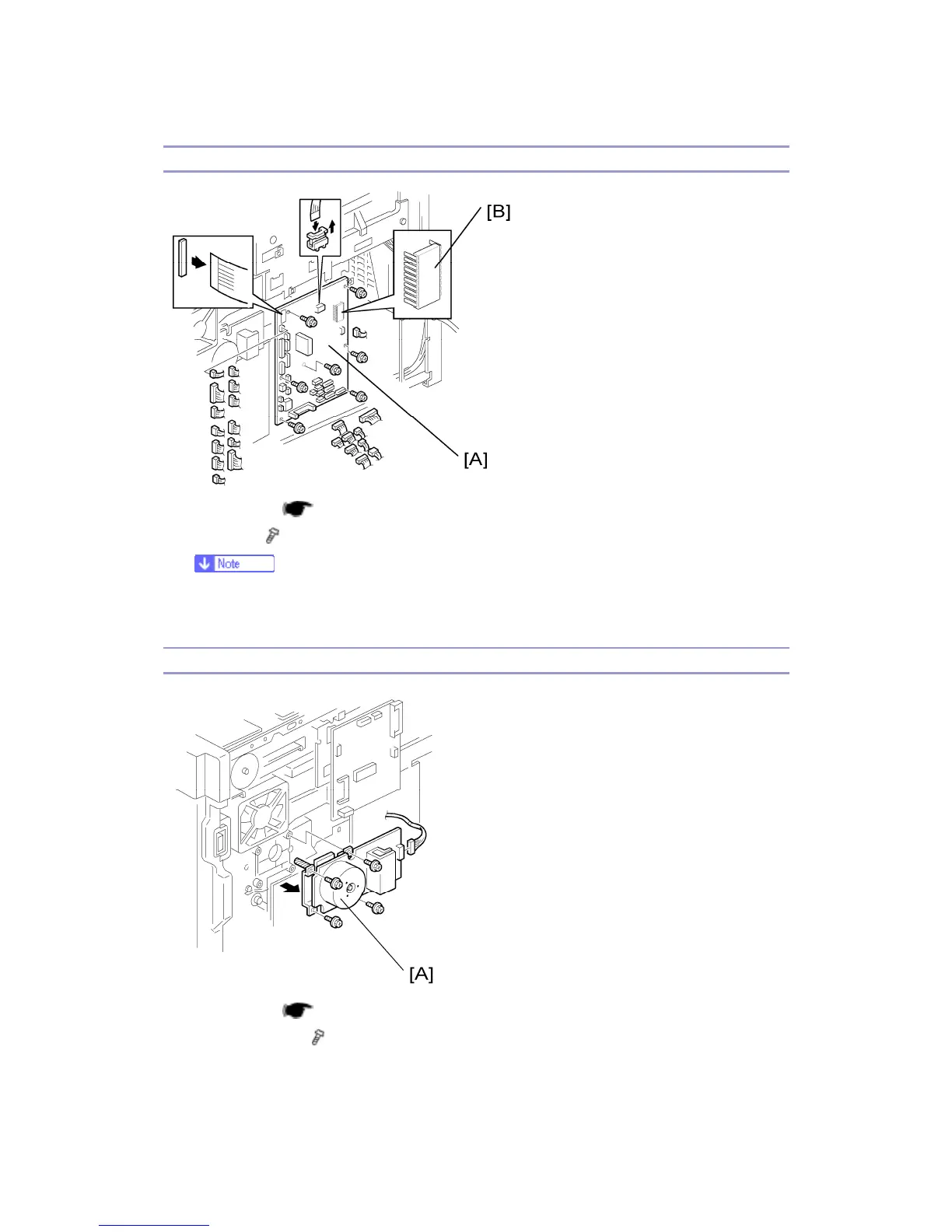

BICU (Base-Engine Image Control Unit)
1. Rear cover (
p.54)
2. BICU [A] (
x 7, all connectors, 2 flat cables)
 Remove the NVRAM [B] from the old BICU and install it on the new BICU when
you replace the BICU. The NVRAM keeps machine-specific data.
Main Motor
1. Rear cover (
p.54)
2. Main motor [A] (
x 4, x 1)
