B245/B276/B277/B268/B269 Service Manual 18-Jan-06
222
Photoconductor Unit (PCU)
Overview

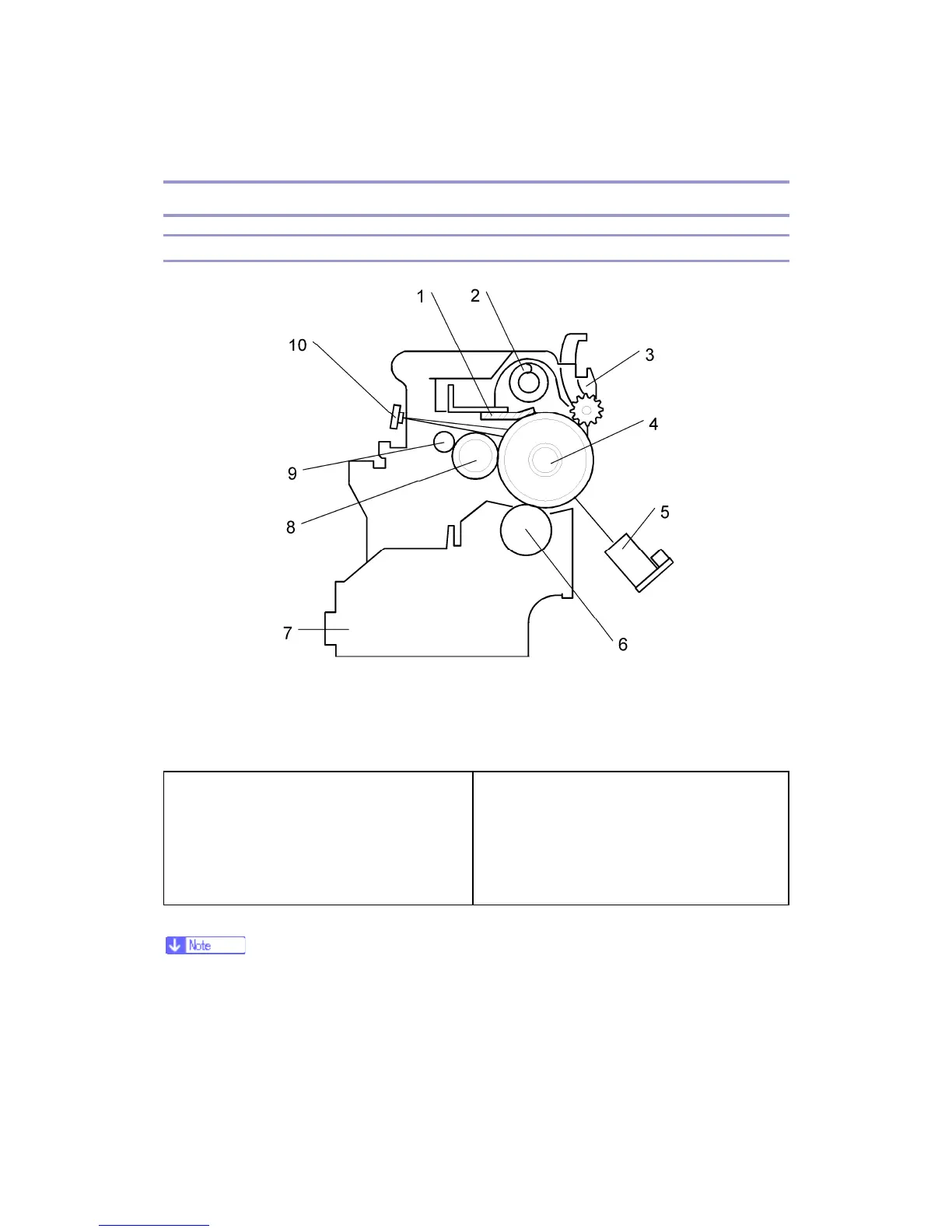

The PCU consists of the components shown in the above illustration. An organic
photoconductor (OPC) drum (diameter: 30 mm) is used in this machine.
1. Cleaning Blade
2. Toner Collection Coil
3. Pick-off Pawl
4. OPC Drum
5. ID Sensor (see note)
6. Development Roller
7. Development Unit
8. Charge Roller
9. Charge Roller Cleaning Brush
10. Quenching Lamp (see note)
The ID sensor and quenching lamp are not included in the PCU.
