Jam History Codes
Code Meaning
210 Original does not reach the registration sensor.
211 Original caught at the registration sensor.
212 Original does not reach the original exit sensor.
213 Original caught at the original exit sensor.
214 Original does not reach the original reverse sensor.
215 Original caught at the original reverse sensor.

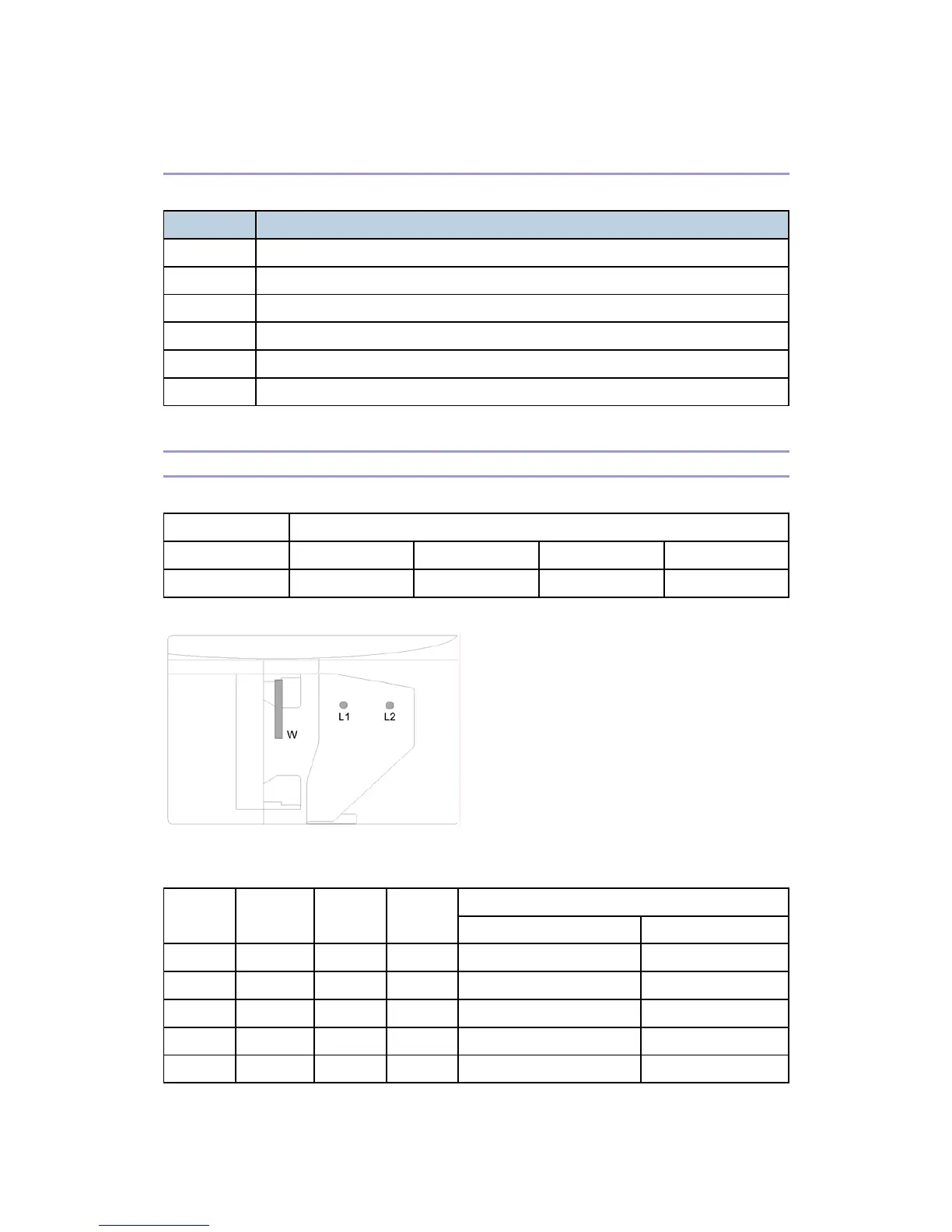

ADF APS Sensor Output Display (SP 6901)
- Sensor Positions -
Large to Small
W1 1 0 0 1
W2 0 0 1 1
- Reading Data -
Paper Size
W1 W2 L1 L2
NA EU/AA
0 0 0 0 — B5 LEF
0 0 1 1 11" x 17" B4
0 1 0 0 8
1
/
2
" x 5
1
/
2
" LEF A5 LEF
0 1 1 0 8
1
/
2
" x 11" SEF A4 SEF
1 1 1 1 8
1
/
2
" x 14" 8
1
/
2
" x 13"
