Laser Exposure

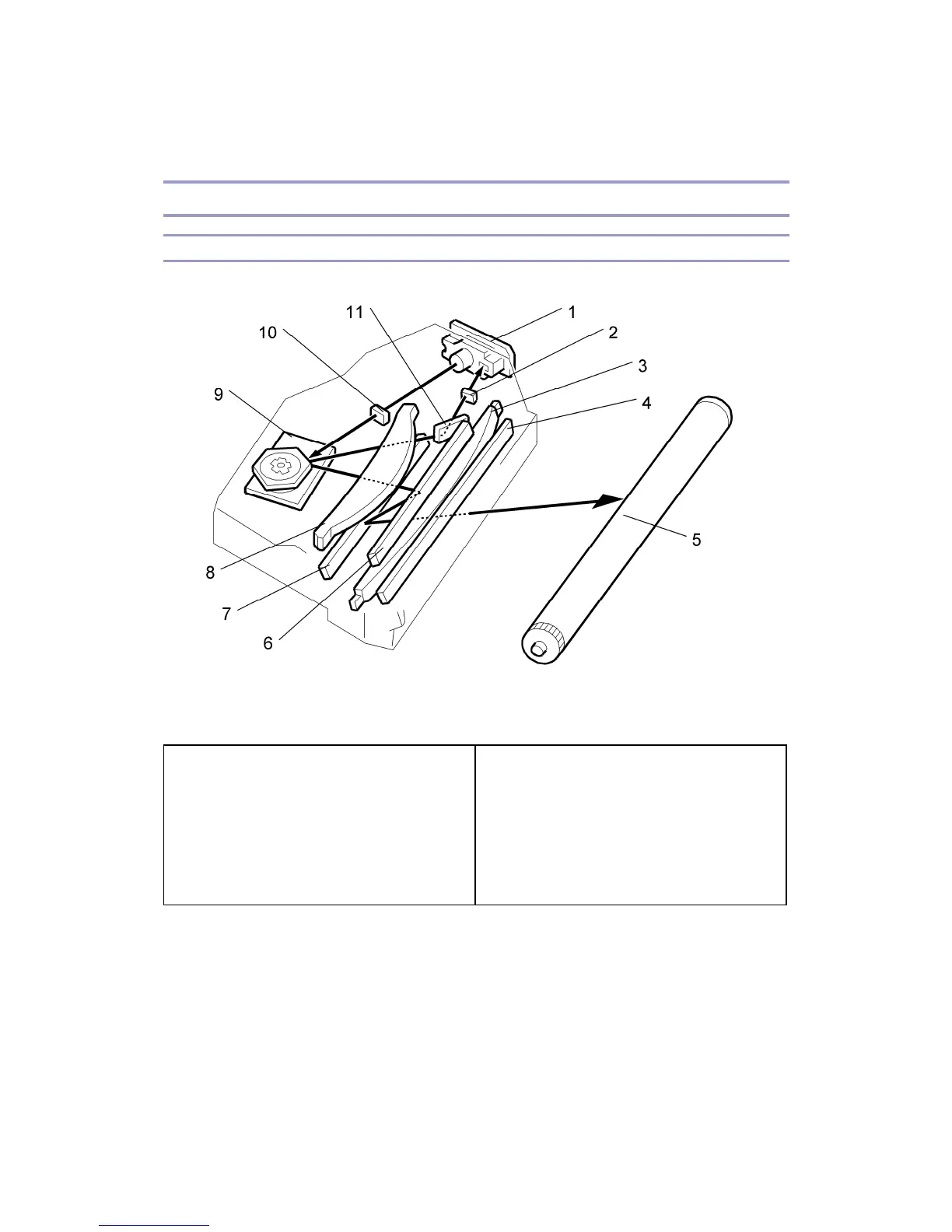

Overview
1. LD unit
2. Synchronization detector lens
3. Double toroidal lens
4. Shield glass
5. OPC drum
6. 1st mirror
7. 2nd mirror
8. F-theta lens
9. Polygon mirror
10. Cylindrical lens
11. Synchronization detector mirror
 The LD drive board controls both the laser output and laser synchronization mechanism.
 The machine cuts off the power supply to the LD drive board if the front or right cover is
opened.
