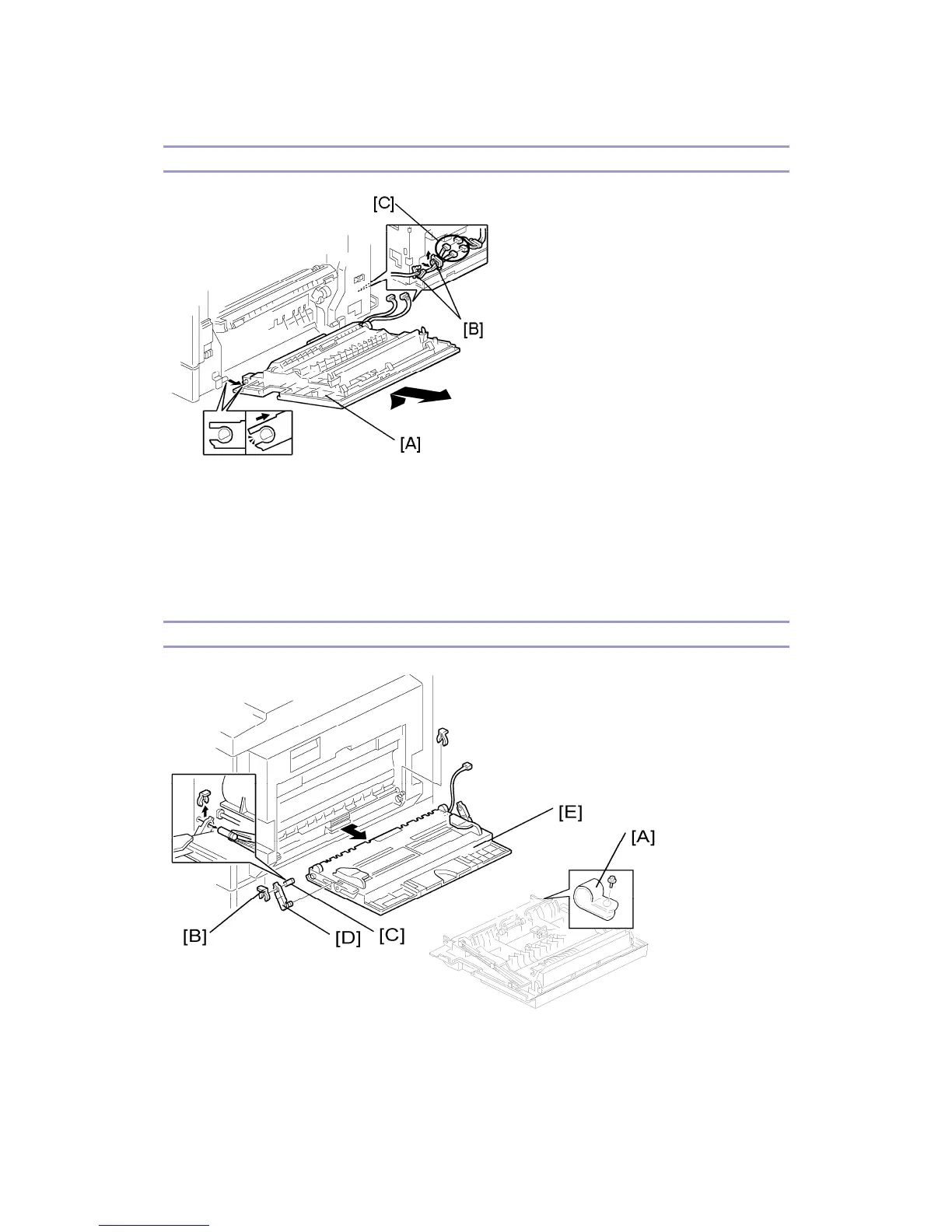

Right Door (Duplex Unit (B269/B277))
1. Right rear cover (see above)
2. Open the right door [A].
3. Open the clamps [B] and disconnect the two connectors [C] or three connectors
(B269/B277).
4. Right door
By-pass Tray
1. Right rear cover (above)
2. Open the right door.
3. Release the by-pass tray cable from the clamps (see [B] on the preceding
