B245/B276/B277/B268/B269 Service Manual 18-Jan-06
90

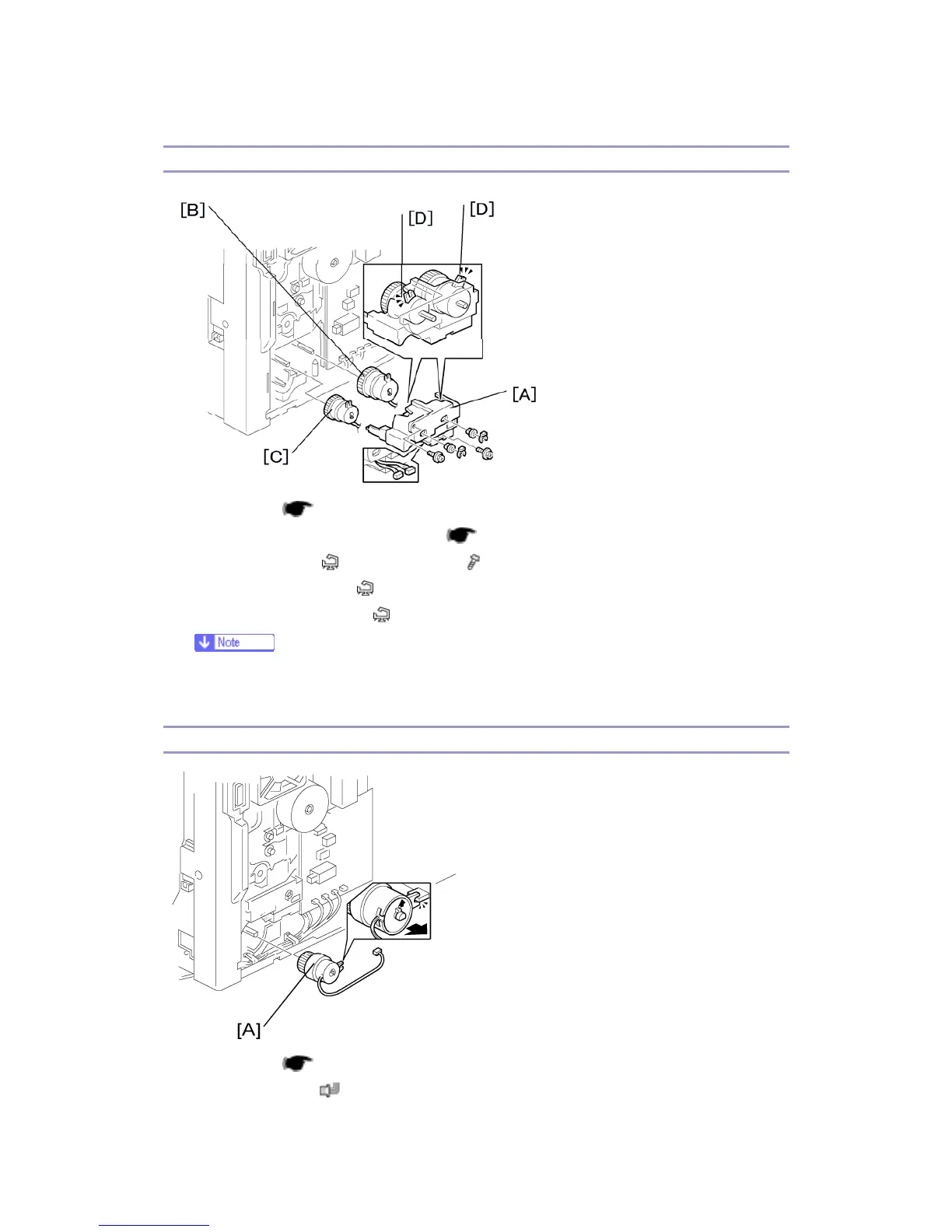

Upper Paper Feed Clutch and By-Pass Feed Clutch
1. Rear cover (
p.54)
2. High-voltage power supply board (
p.89)
3. Clutch cover [A] (
x 2, 2 bushings, x 2 )
4. Paper feed clutch [B] (
x 1)
5. By-pass feed clutch [C] (
x 1)
Make sure that the rotation-prevention tabs [D] on the clutches fit correctly into
the corresponding openings on the clutch cover when you reinstall.
Relay Clutch
1. Rear cover (
p.54)
2. Relay clutch [A] (
x 1)
