B245/B276/B277/B268/B269 Service Manual 18-Jan-06
6
Copier Installation

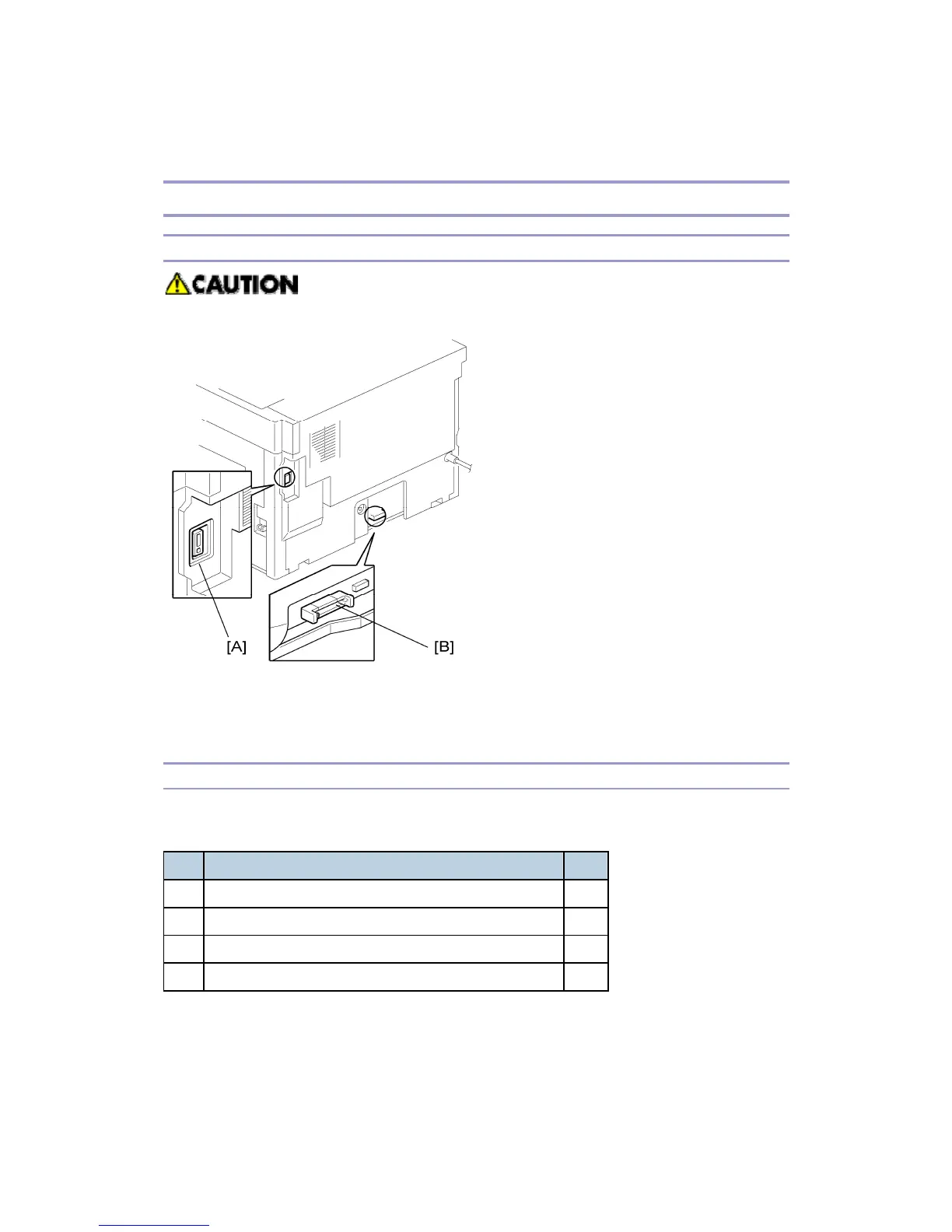

Power Sockets for Peripherals
Make sure to plug the cables into the correct sockets.
[A]: Socket for ADF/ARDF (Rated voltage output max. DC24 V)
[B]: Socket for paper tray unit (Rated voltage output max. DC24 V)
Accessory Check
Check that you have the accessories in this list.
Basic Machines
No. Description Q’ty
1 NECR-English /Multi-language (-17, -27,-19, -29) 1
2 EU Safety Sheet (-27, -22,-24, -26) 1
3 Laser Decal (-27, -22,-24, -26, -19, -28, -29) 1
4 Model Name Plate (-22,-29) 1
