B245/B276/B277/B268/B269 Service Manual 18-Jan-06
228
Drive

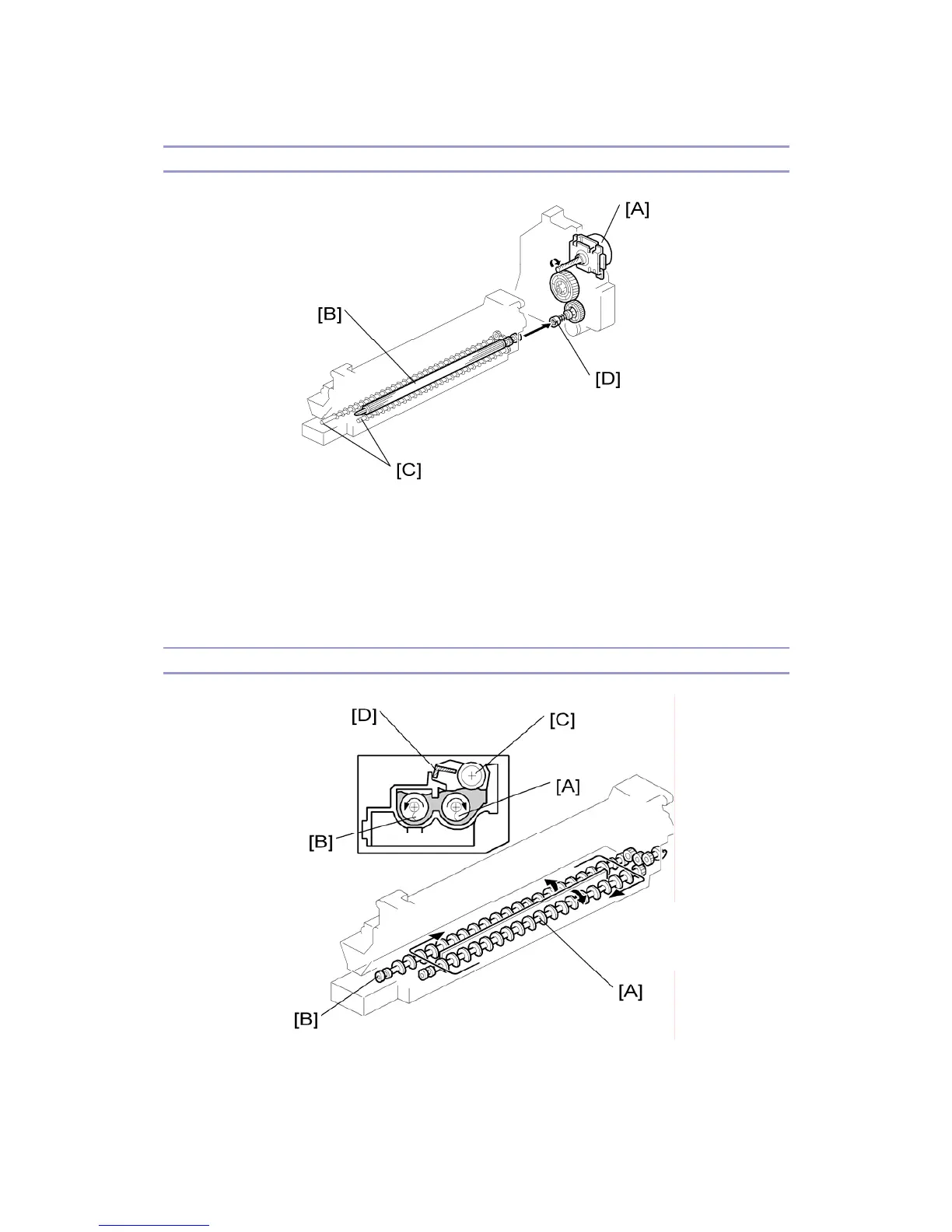

The main motor [A] drives the development roller [B] and mixing augers [C] through a train of
gears and the development drive shaft [D]. When the PCU is pushed in, the development
drive shaft engages the development roller gear.
The development drive gears (except for the gears in the development unit) are helical gears.
These gears are quieter than normal gears.
Developer Mixing
The two mixing augers, [A, B] keep the developer evenly mixed. Mixing auger 2 [A] transports
excess developer, scraped off the development roller [C] by the doctor blade [D], towards the
