Duplex Unit
Overall
The printed page from the fusing unit goes straight through to the exit tray, or upward to the
inverter section, depending on the position of the junction gate.
If the user selects duplex mode, the page is directed to the inverter tray, then reversed
through the duplex unit, and back into the machine for printing the second side.

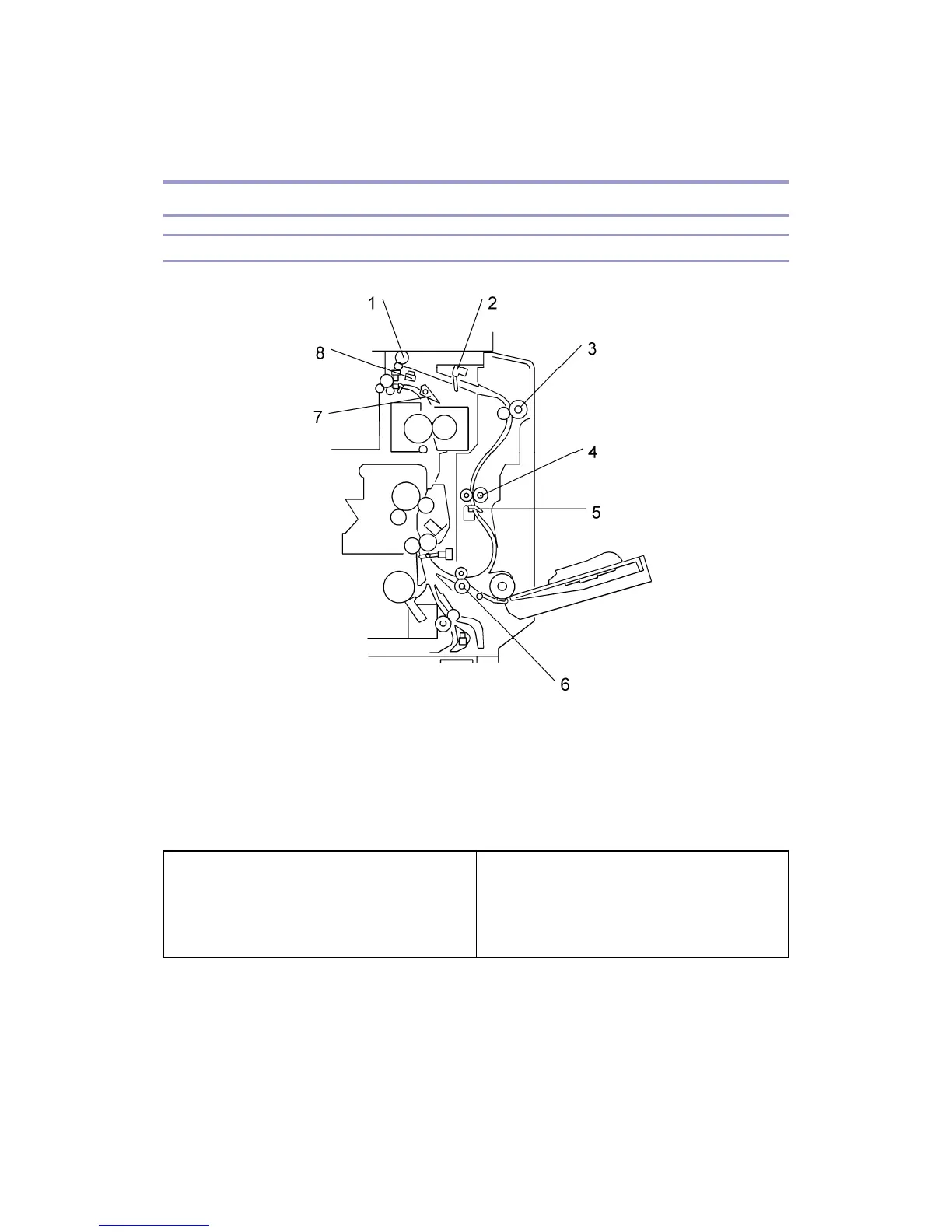

1. Duplex Inverter Roller
2. Duplex Entrance Sensor
3. Upper Transport Roller
4. Middle Transport Roller
5. Duplex Exit Sensor
6. Lower Transport Roller
7. Junction Gate
8. Duplex Inverter Sensor
