B245/B276/B277/B268/B269 Service Manual 18-Jan-06
61
Scanner Unit

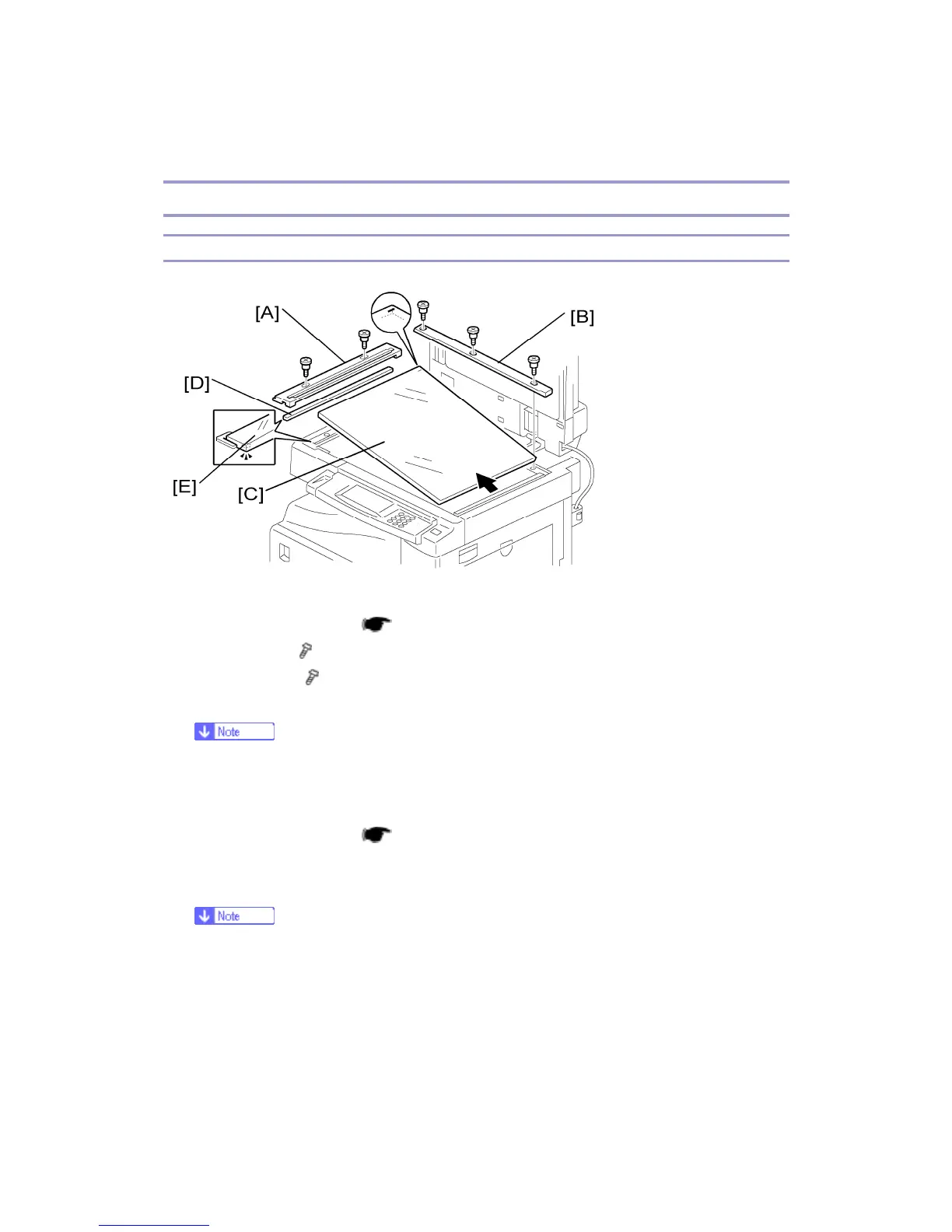

Exposure Glass/DF Exposure Glass
- Exposure Glass -
1. Front upper left cover (
p.55)
2. Left scale [A] (
x 2)
3. Rear scale [B] (
x 3)
4. Exposure glass [C]
Make sure that the mark is at the rear left corner, and that the left edge is aligned
to the support on the frame when you reinstall the exposure glass.
- DF Exposure Glass -
1. Front upper left cover (
p.55)
2. Left scale [A]
3. DF exposure glass [D]
Make sure that the mark [E] is on the bottom at the front end when reinstall the
exposure glass.
