B245/B276/B277/B268/B269 Service Manual 18-Jan-06
55

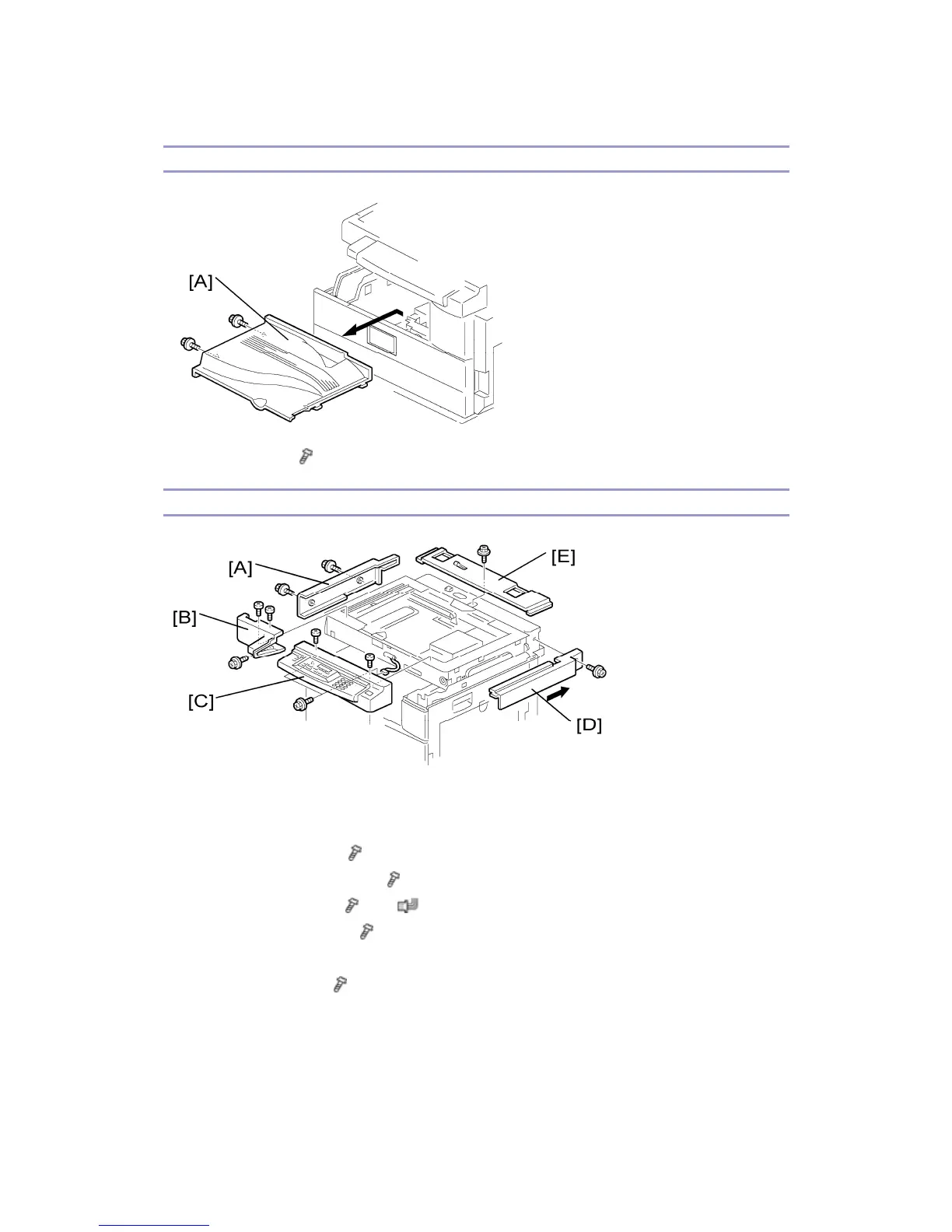

Copy Tray
1. Copy tray [A] (
x 2)
Upper Covers
1. Platen Cover, ARDF, or ADF (if installed)
2. Rear cover
3. Left upper cover [A] (
x 2)
4. Front upper left cover [B] (
x 3)
5. Operation panel [C] (
x 4, x 1)
6. Right upper cover [D] (
x 1, 3 hooks)
7. Push the cover to the rear side to release the hooks.
8. Top rear cover [E] (
x 1)
