Ricoh K-C3 - Duplex Inverter Motor; Duplex Control Board

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
103
2. Detach the chain and spring from the frame, and lower the right door.
3. Cover [A] (
x 1)
4. Motor bracket [B] (
x 4, x 1).
5. Duplex transport motor [C] (
x 2)

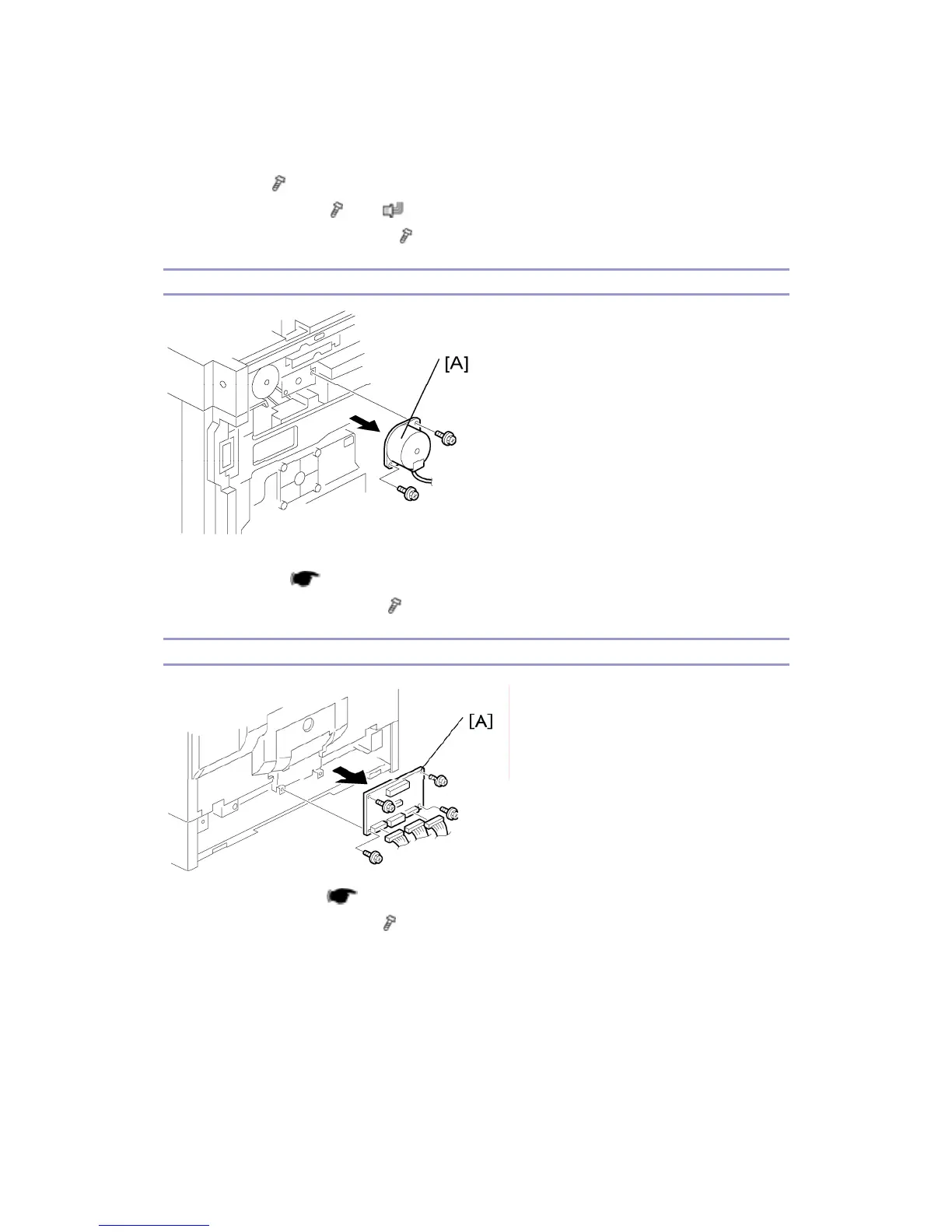

Duplex Inverter Motor
1. Rear cover
2. Exhaust fan (
p.106)
3. Duplex inverter motor [A] (
x 2, x 1)
Duplex Control Board
1. Rear lower cover (
p.54)
2. Duplex control board [A] (
x 4 , all connectors)
