B245/B276/B277/B268/B269 Service Manual 18-Jan-06
108

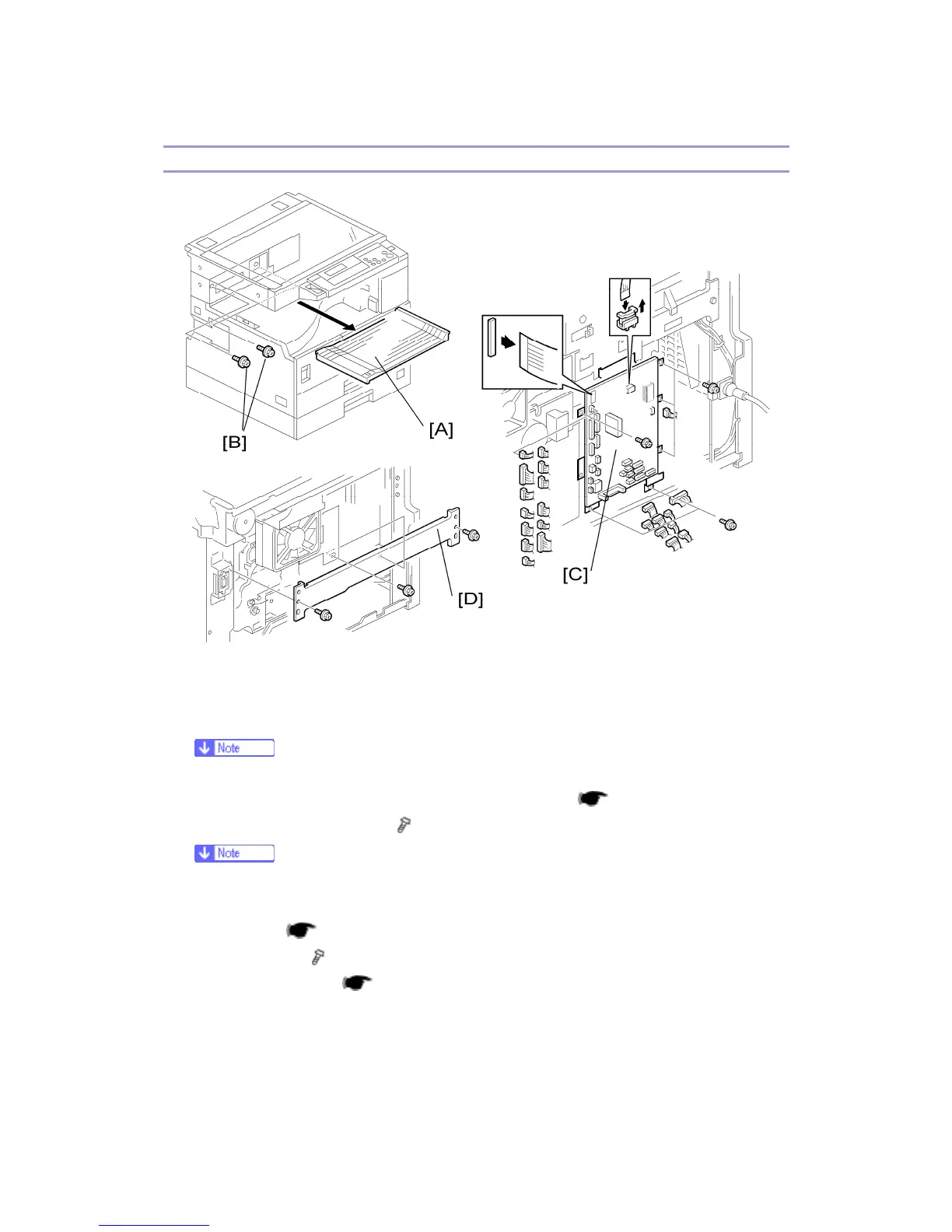

Gearbox
- Replacement Procedure -
1. Inverter tray [A]
Two screws [B] from the middle rear cover
This step releases the topmost part of the BICU bracket.
High-voltage power supply board (with the bracket) (
p.89)
BICU (with the bracket) [C] (
x 6)
If you have difficulty to remove the bracket, remove the screw at the middle of
the crosspiece (see step 6).
Main motor (
p.105)
Crosspiece [D] (
x 3)
Registration clutch (
p.89)
To Next Page
