B245/B276/B277/B268/B269 Service Manual 18-Jan-06
109
2. PCU (
p.76)

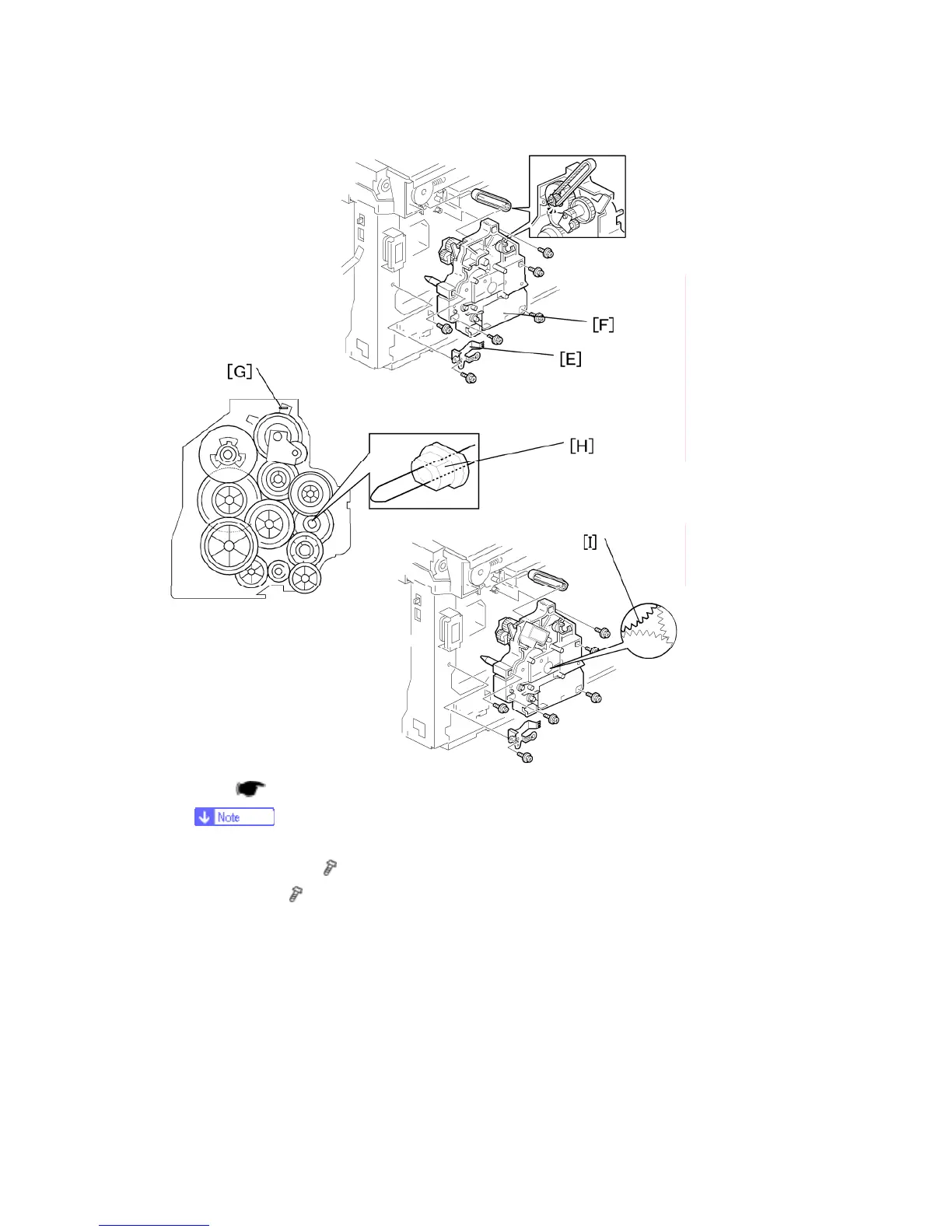

 This step releases the gear (on the gearbox) that drives the PCU.
 Ground plate [E] (
x 2)
 Gearbox [F] (
x 5, 1 belt)
Do not change the position of the spring [G] and make sure that the bushing [H] on the PCU
drive shaft is in the correct position you when you reassemble. You can adjust its position by
rotating the gear [I] seen from the opening of the gearbox.
