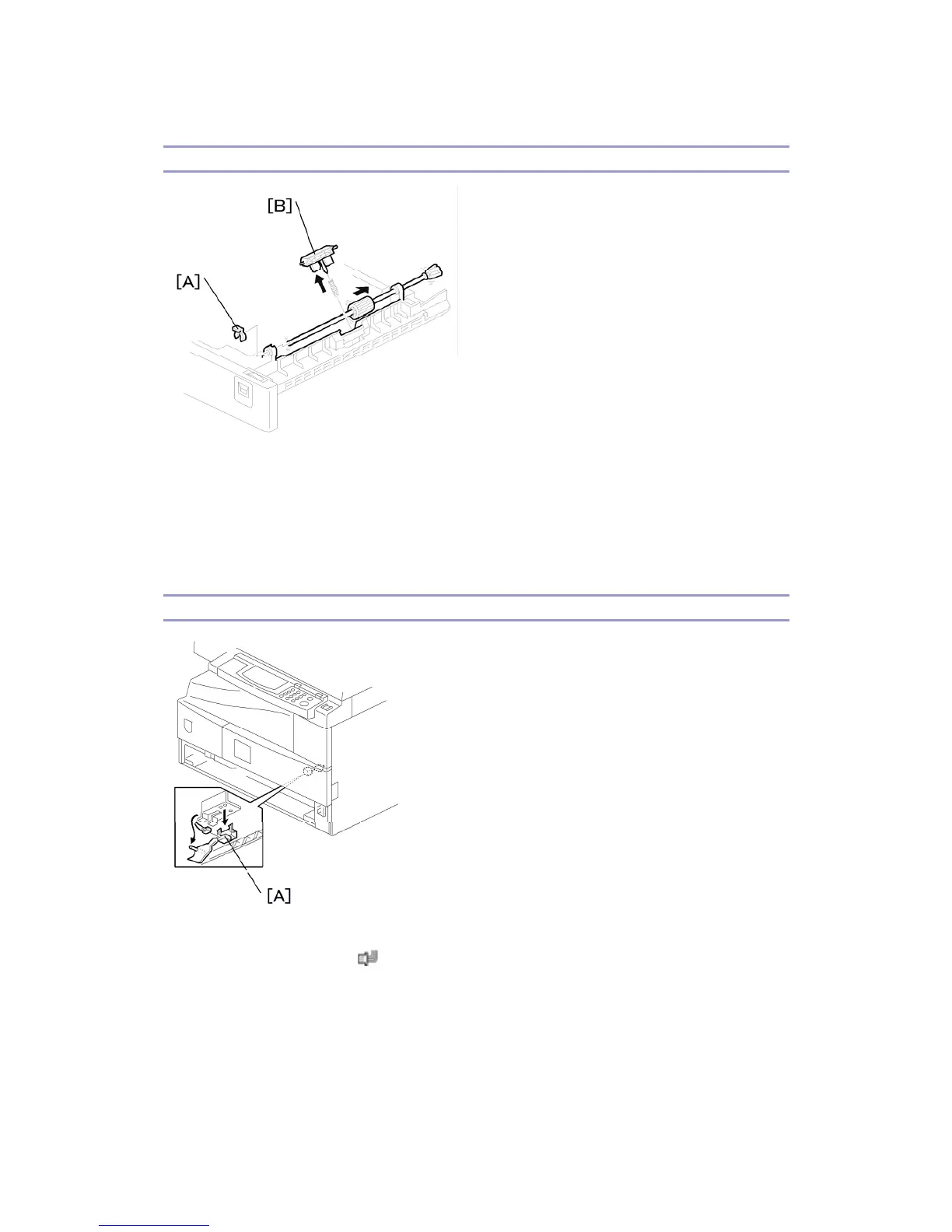

Friction Pad
1. Paper cassette
2. Clip [A]
3. Push the shaft back through the opening, so that the roller moves clear of the
friction pad.
4. Friction pad [B]
Paper End Sensor
1. Paper cassette
2. Paper end sensor [A] (
x 1)
