Anti-condensation Heater Installation
Unplug the machine power cord before starting the following procedure.
1. Remove the exposure glass.
2. Remove the left cover.
3. Pass the connector [A] through the opening [B].

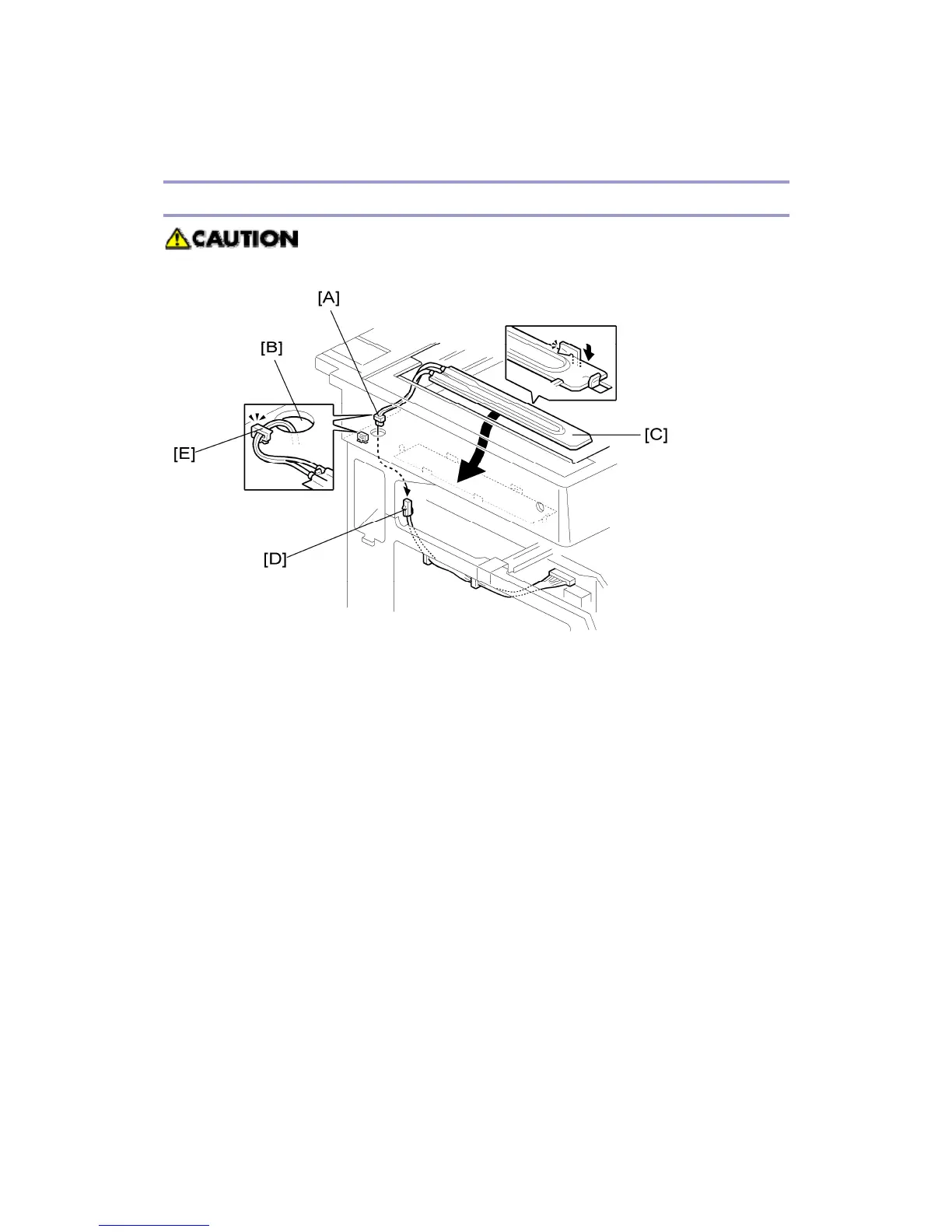

4. Install the anti-condensation heater [C], as shown.
5. Join the connectors [A, D].
6. Clamp the harness with the clamp [E].
7. Reinstall the left cover and exposure glass.
